Documentation for AIXM 5.1.1
Definition Type: Element
Name: abstractAssociationRole
Namespace: http://www.opengis.net/gml/3.2
Type: gml:AssociationRoleType
Containing Schema: gmlBase.xsd
Abstract True
Documentation:
Applying this pattern shall restrict the multiplicity of objects in a property element using this content model to exactly one. An instance of this type shall contain an element representing an object, or serve as a pointer to a remote object.
Applying the pattern to define an application schema specific property type allows to restrict
-	the inline object to specified object types,
-	the encoding to "by-reference only" (see 7.2.3.7),
-	the encoding to "inline only" (see 7.2.3.8).

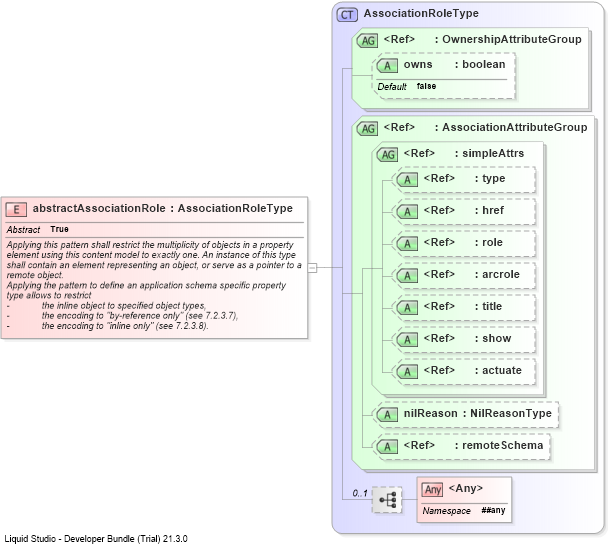

Collapse XSD Schema Diagram:
Drilldown into remoteSchemaDrilldown into nilReasonDrilldown into actuateDrilldown into showDrilldown into titleDrilldown into arcroleDrilldown into roleDrilldown into hrefDrilldown into typeDrilldown into simpleAttrsDrilldown into AssociationAttributeGroupDrilldown into ownsDrilldown into OwnershipAttributeGroupDrilldown into AssociationRoleTypeXSD Diagram of abstractAssociationRole
Collapse XSD Schema Code:
<element name="abstractAssociationRole" type="gml:AssociationRoleType" abstract="true">
    <annotation>
        <documentation>Applying this pattern shall restrict the multiplicity of objects in a property element using this content model to exactly one. An instance of this type shall contain an element representing an object, or serve as a pointer to a remote object.
Applying the pattern to define an application schema specific property type allows to restrict
-	the inline object to specified object types,
-	the encoding to "by-reference only" (see 7.2.3.7),
-	the encoding to "inline only" (see 7.2.3.8).</documentation>
    </annotation>
</element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
<xs:any> Allowed namespace: '##any' (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
owns gml:owns false (Optional)
type xlink:type (Optional)
href xlink:href (Optional)
role xlink:role (Optional)
arcrole xlink:arcrole (Optional)
title xlink:title (Optional)
show xlink:show (Optional)
actuate xlink:actuate (Optional)
nilReason gml:nilReason (Optional)
remoteSchema gml:remoteSchema (Optional)
Collapse Derivation Tree:
