Documentation for AIXM 5.1.1
Definition Type: Element
Name: AbstractCurve
Namespace: http://www.opengis.net/gml/3.2
Type: gml:AbstractCurveType
Containing Schema: geometryBasic0d1d.xsd
Abstract True
Documentation:
The AbstractCurve element is the abstract head of the substitution group for all (continuous) curve elements.

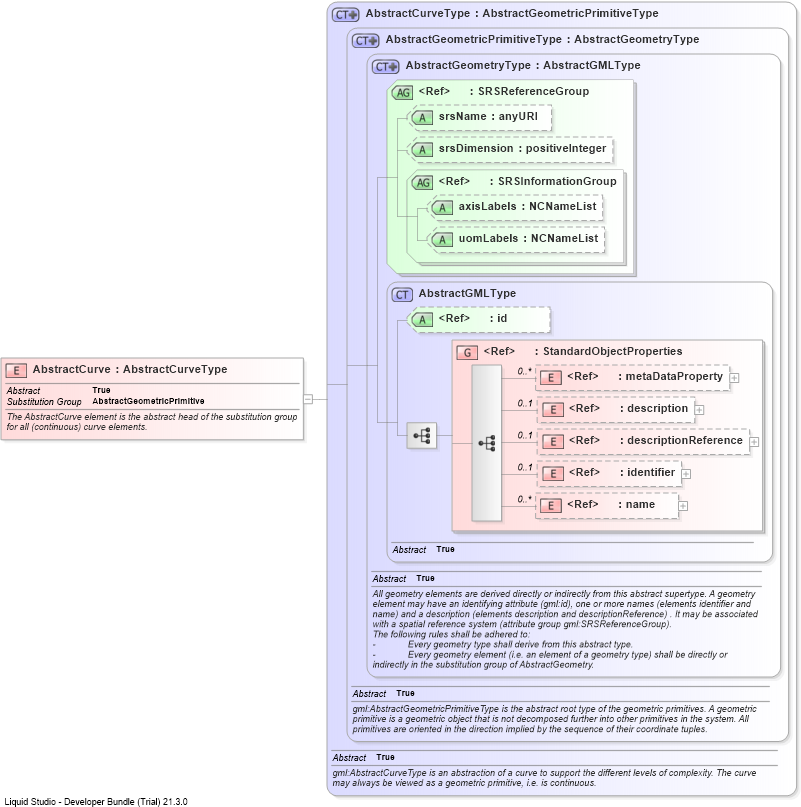

Collapse XSD Schema Diagram:
Drilldown into nameDrilldown into identifierDrilldown into descriptionReferenceDrilldown into descriptionDrilldown into metaDataPropertyDrilldown into StandardObjectPropertiesDrilldown into idDrilldown into AbstractGMLTypeDrilldown into uomLabelsDrilldown into axisLabelsDrilldown into SRSInformationGroupDrilldown into srsDimensionDrilldown into srsNameDrilldown into SRSReferenceGroupDrilldown into AbstractGeometryTypeDrilldown into AbstractGeometricPrimitiveTypeDrilldown into AbstractCurveTypeXSD Diagram of AbstractCurve
Collapse XSD Schema Code:
<element name="AbstractCurve" type="gml:AbstractCurveType" abstract="true" substitutionGroup="gml:AbstractGeometricPrimitive">
    <annotation>
        <documentation>The AbstractCurve element is the abstract head of the substitution group for all (continuous) curve elements.</documentation>
    </annotation>
</element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
descriptionReference gml:descriptionReference 0 (1)
identifier gml:identifier 0 (1)
name gml:name 0 unbounded
<xs:group> gml:StandardObjectProperties (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id gml:id (Optional)
srsName gml:srsName (Optional)
srsDimension gml:srsDimension (Optional)
axisLabels gml:axisLabels (Optional)
uomLabels gml:uomLabels (Optional)
Collapse Derivation Tree:
Collapse References:
gml:AbstractGeometricPrimitive
Documentation for AIXM 5.1.1
Generated using Liquid Studio - Developer Bundle (Trial) 21.3.0
