Documentation for AIXM 5.1.1
Definition Type: ComplexType
Name: AbstractGeneralOperationParameterPropertyType
Namespace: http://www.opengis.net/gml/3.2
Containing Schema: coordinateOperations.xsd
Abstract
Documentation:
gml:AbstractGeneralOperationParameterPropertyType is a property type for association roles to an operation parameter or group, either referencing or containing the definition of that parameter or group.

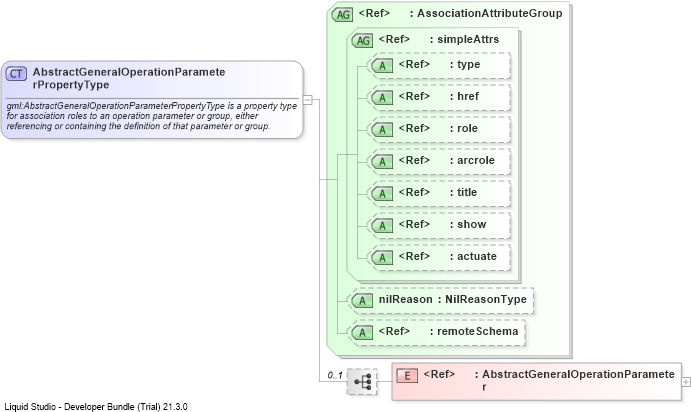

Collapse XSD Schema Diagram:
Drilldown into AbstractGeneralOperationParameterDrilldown into remoteSchemaDrilldown into nilReasonDrilldown into actuateDrilldown into showDrilldown into titleDrilldown into arcroleDrilldown into roleDrilldown into hrefDrilldown into typeDrilldown into simpleAttrsDrilldown into AssociationAttributeGroupXSD Diagram of AbstractGeneralOperationParameterPropertyType
Collapse XSD Schema Code:
<complexType name="AbstractGeneralOperationParameterPropertyType">
    <annotation>
        <documentation>gml:AbstractGeneralOperationParameterPropertyType is a property type for association roles to an operation parameter or group, either referencing or containing the definition of that parameter or group.</documentation>
    </annotation>
    <sequence minOccurs="0">
        <element ref="gml:AbstractGeneralOperationParameter" />
    </sequence>
    <attributeGroup ref="gml:AssociationAttributeGroup" />
</complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
AbstractGeneralOperationParameter gml:AbstractGeneralOperationParameter (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
type xlink:type (Optional)
href xlink:href (Optional)
role xlink:role (Optional)
arcrole xlink:arcrole (Optional)
title xlink:title (Optional)
show xlink:show (Optional)
actuate xlink:actuate (Optional)
nilReason gml:nilReason (Optional)
remoteSchema gml:remoteSchema (Optional)
Collapse Derivation Tree:
Collapse References:
gml:abstractGeneralOperationParameterRef, gml:generalOperationParameter, gml:includesParameter, gml:parameter, gml:usesParameter
