Documentation for AIXM 5.1.1
Definition Type: ComplexType
Name: AbstractMD_Identification_Type
Namespace: http://www.isotc211.org/2005/gmd
Type: gco:AbstractObject_Type
Containing Schema: identification.xsd
Abstract True
Documentation:
Basic information about data

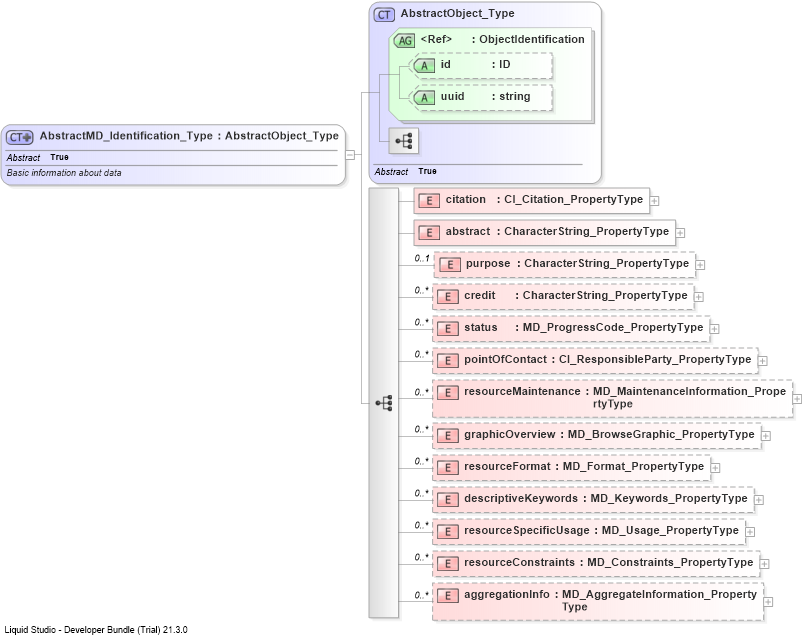

Collapse XSD Schema Diagram:
Drilldown into aggregationInfoDrilldown into resourceConstraintsDrilldown into resourceSpecificUsageDrilldown into descriptiveKeywordsDrilldown into resourceFormatDrilldown into graphicOverviewDrilldown into resourceMaintenanceDrilldown into pointOfContactDrilldown into statusDrilldown into creditDrilldown into purposeDrilldown into abstractDrilldown into citationDrilldown into uuidDrilldown into idDrilldown into ObjectIdentificationDrilldown into AbstractObject_TypeXSD Diagram of AbstractMD_Identification_Type
Collapse XSD Schema Code:
<xs:complexType name="AbstractMD_Identification_Type" abstract="true">
    <xs:annotation>
        <xs:documentation>Basic information about data</xs:documentation>
    </xs:annotation>
    <xs:complexContent>
        <xs:extension base="gco:AbstractObject_Type">
            <xs:sequence>
                <xs:element name="citation" type="gmd:CI_Citation_PropertyType" />
                <xs:element name="abstract" type="gco:CharacterString_PropertyType" />
                <xs:element name="purpose" type="gco:CharacterString_PropertyType" minOccurs="0" />
                <xs:element name="credit" type="gco:CharacterString_PropertyType" minOccurs="0" maxOccurs="unbounded" />
                <xs:element name="status" type="gmd:MD_ProgressCode_PropertyType" minOccurs="0" maxOccurs="unbounded" />
                <xs:element name="pointOfContact" type="gmd:CI_ResponsibleParty_PropertyType" minOccurs="0" maxOccurs="unbounded" />
                <xs:element name="resourceMaintenance" type="gmd:MD_MaintenanceInformation_PropertyType" minOccurs="0" maxOccurs="unbounded" />
                <xs:element name="graphicOverview" type="gmd:MD_BrowseGraphic_PropertyType" minOccurs="0" maxOccurs="unbounded" />
                <xs:element name="resourceFormat" type="gmd:MD_Format_PropertyType" minOccurs="0" maxOccurs="unbounded" />
                <xs:element name="descriptiveKeywords" type="gmd:MD_Keywords_PropertyType" minOccurs="0" maxOccurs="unbounded" />
                <xs:element name="resourceSpecificUsage" type="gmd:MD_Usage_PropertyType" minOccurs="0" maxOccurs="unbounded" />
                <xs:element name="resourceConstraints" type="gmd:MD_Constraints_PropertyType" minOccurs="0" maxOccurs="unbounded" />
                <xs:element name="aggregationInfo" type="gmd:MD_AggregateInformation_PropertyType" minOccurs="0" maxOccurs="unbounded" />
            </xs:sequence>
        </xs:extension>
    </xs:complexContent>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
citation gmd:citation (1) (1)
abstract gmd:abstract (1) (1)
purpose gmd:purpose 0 (1)
credit gmd:credit 0 unbounded
status gmd:status 0 unbounded
pointOfContact gmd:pointOfContact 0 unbounded
resourceMaintenance gmd:resourceMaintenance 0 unbounded
graphicOverview gmd:graphicOverview 0 unbounded
resourceFormat gmd:resourceFormat 0 unbounded
descriptiveKeywords gmd:descriptiveKeywords 0 unbounded
resourceSpecificUsage gmd:resourceSpecificUsage 0 unbounded
resourceConstraints gmd:resourceConstraints 0 unbounded
aggregationInfo gmd:aggregationInfo 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
id gco:id (Optional)
uuid gco:uuid (Optional)
Collapse Derivation Tree:
Collapse References:
gmd:AbstractMD_Identificationgmd:MD_DataIdentification_Type, gmd:MD_ServiceIdentification_Type,
