Documentation for AIXM 5.1.1
Definition Type: Element
Name: AbstractParametricCurveSurface
Namespace: http://www.opengis.net/gml/3.2
Type: gml:AbstractParametricCurveSurfaceType
Containing Schema: geometryPrimitives.xsd
Abstract True
Documentation:
The element provides a substitution group head for the surface patches based on parametric curves. All properties are specified in the derived subtypes. All derived subtypes shall conform to the constraints specified in ISO 19107:2003, 6.4.40.
If provided, the aggregationType attribute shall have the value "set".

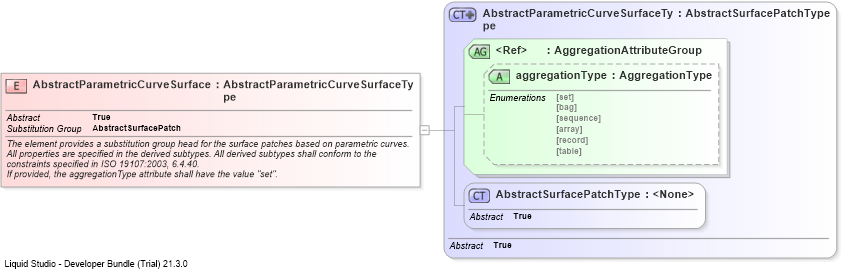

Collapse XSD Schema Diagram:
Drilldown into AbstractSurfacePatchTypeDrilldown into aggregationTypeDrilldown into AggregationAttributeGroupDrilldown into AbstractParametricCurveSurfaceTypeXSD Diagram of AbstractParametricCurveSurface
Collapse XSD Schema Code:
<element name="AbstractParametricCurveSurface" type="gml:AbstractParametricCurveSurfaceType" abstract="true" substitutionGroup="gml:AbstractSurfacePatch">
    <annotation>
        <documentation>The element provides a substitution group head for the surface patches based on parametric curves. All properties are specified in the derived subtypes. All derived subtypes shall conform to the constraints specified in ISO 19107:2003, 6.4.40.
If provided, the aggregationType attribute shall have the value "set".</documentation>
    </annotation>
</element>
Collapse Child Attributes:
Name Type Default Value Use
aggregationType gml:aggregationType (Optional)
Collapse Derivation Tree:
Collapse References:
gml:AbstractSurfacePatch
