Documentation for AIXM 5.1.1
Definition Type: Element
Name: AbstractRS_ReferenceSystem
Namespace: http://www.isotc211.org/2005/gmd
Type: gmd:AbstractRS_ReferenceSystem_Type
Containing Schema: referenceSystem.xsd
Abstract True

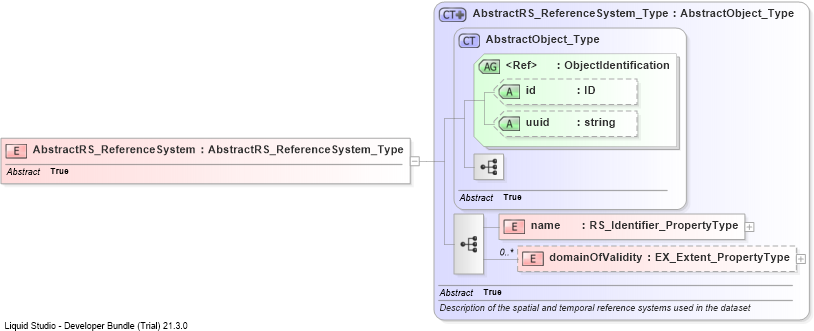

Collapse XSD Schema Diagram:
Drilldown into domainOfValidityDrilldown into nameDrilldown into uuidDrilldown into idDrilldown into ObjectIdentificationDrilldown into AbstractObject_TypeDrilldown into AbstractRS_ReferenceSystem_TypeXSD Diagram of AbstractRS_ReferenceSystem
Collapse XSD Schema Code:
<xs:element name="AbstractRS_ReferenceSystem" type="gmd:AbstractRS_ReferenceSystem_Type" abstract="true" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
name gmd:name (1) (1)
domainOfValidity gmd:domainOfValidity 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
id gco:id (Optional)
uuid gco:uuid (Optional)
Collapse Derivation Tree:
Documentation for AIXM 5.1.1
Generated using Liquid Studio - Developer Bundle (Trial) 21.3.0
