Documentation for AIXM 5.1.1
Definition Type: Group
Name: AerialRefuellingAnchorPropertyGroup
Namespace: http://www.aixm.aero/schema/5.1.1
Containing Schema: AIXM_Features.xsd

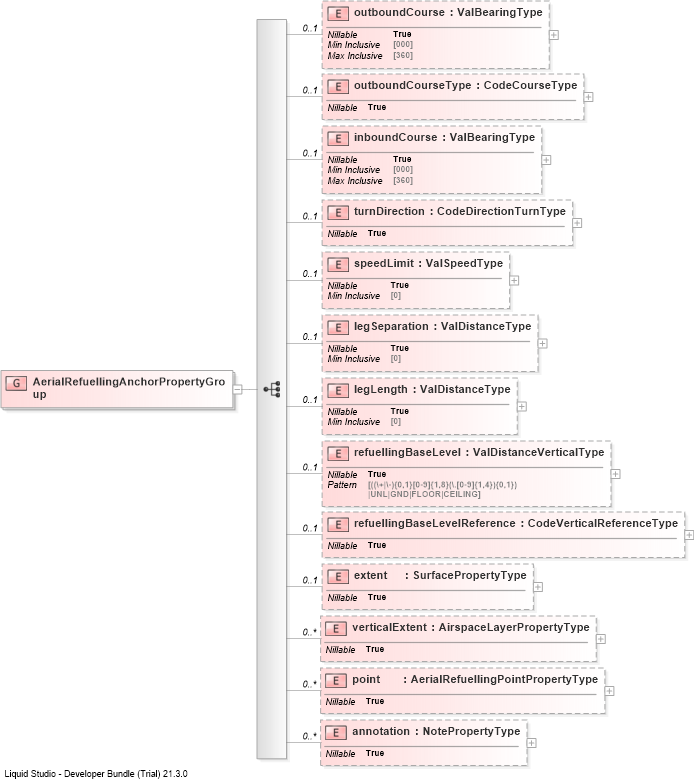

Collapse XSD Schema Diagram:
Drilldown into annotationDrilldown into pointDrilldown into verticalExtentDrilldown into extentDrilldown into refuellingBaseLevelReferenceDrilldown into refuellingBaseLevelDrilldown into legLengthDrilldown into legSeparationDrilldown into speedLimitDrilldown into turnDirectionDrilldown into inboundCourseDrilldown into outboundCourseTypeDrilldown into outboundCourseXSD Diagram of AerialRefuellingAnchorPropertyGroup
Collapse XSD Schema Code:
<group name="AerialRefuellingAnchorPropertyGroup">
    <sequence>
        <element name="outboundCourse" type="aixm:ValBearingType" nillable="true" minOccurs="0" />
        <element name="outboundCourseType" type="aixm:CodeCourseType" nillable="true" minOccurs="0" />
        <element name="inboundCourse" type="aixm:ValBearingType" nillable="true" minOccurs="0" />
        <element name="turnDirection" type="aixm:CodeDirectionTurnType" nillable="true" minOccurs="0" />
        <element name="speedLimit" type="aixm:ValSpeedType" nillable="true" minOccurs="0" />
        <element name="legSeparation" type="aixm:ValDistanceType" nillable="true" minOccurs="0" />
        <element name="legLength" type="aixm:ValDistanceType" nillable="true" minOccurs="0" />
        <element name="refuellingBaseLevel" type="aixm:ValDistanceVerticalType" nillable="true" minOccurs="0" />
        <element name="refuellingBaseLevelReference" type="aixm:CodeVerticalReferenceType" nillable="true" minOccurs="0" />
        <element name="extent" type="aixm:SurfacePropertyType" nillable="true" minOccurs="0" maxOccurs="1" />
        <element name="verticalExtent" type="aixm:AirspaceLayerPropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
        <element name="point" type="aixm:AerialRefuellingPointPropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
        <element name="annotation" type="aixm:NotePropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
    </sequence>
</group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
outboundCourse aixm:outboundCourse 0 (1)
outboundCourseType aixm:outboundCourseType 0 (1)
inboundCourse aixm:inboundCourse 0 (1)
turnDirection aixm:turnDirection 0 (1)
speedLimit aixm:speedLimit 0 (1)
legSeparation aixm:legSeparation 0 (1)
legLength aixm:legLength 0 (1)
refuellingBaseLevel aixm:refuellingBaseLevel 0 (1)
refuellingBaseLevelReference aixm:refuellingBaseLevelReference 0 (1)
extent aixm:extent 0 1
verticalExtent aixm:verticalExtent 0 unbounded
point aixm:point 0 unbounded
annotation aixm:annotation 0 unbounded
