Documentation for AIXM 5.1.1
Definition Type: Group
Name: AerialRefuellingPropertyGroup
Namespace: http://www.aixm.aero/schema/5.1.1
Containing Schema: AIXM_Features.xsd

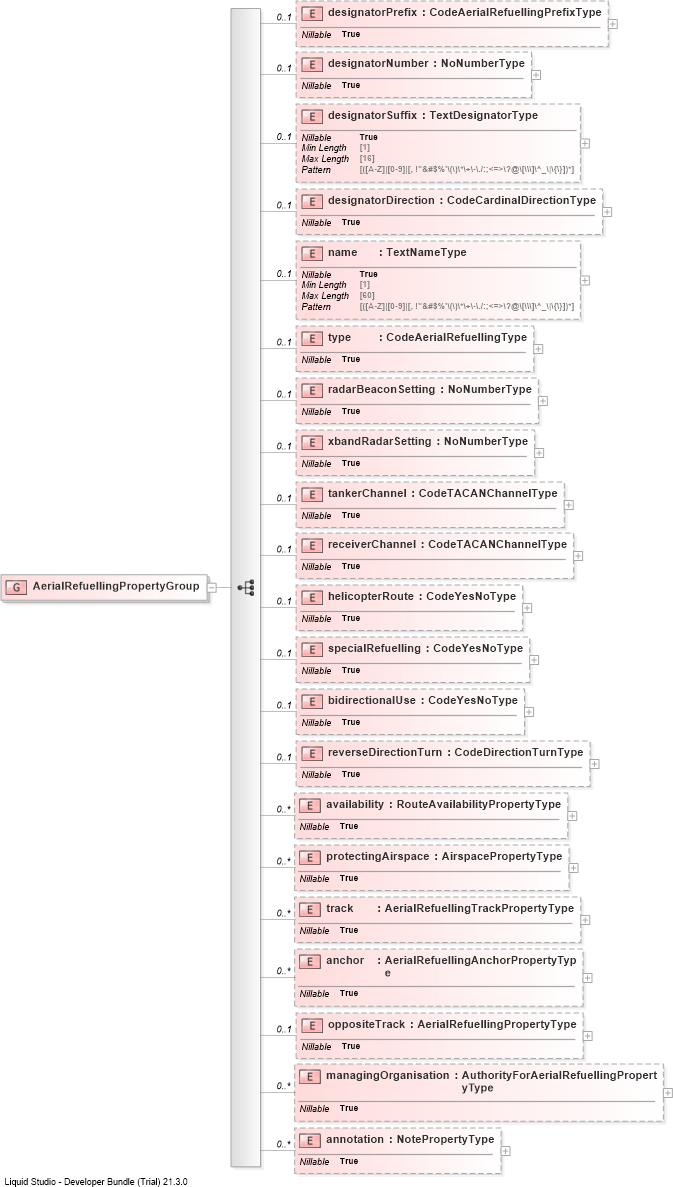

Collapse XSD Schema Diagram:
Drilldown into annotationDrilldown into managingOrganisationDrilldown into oppositeTrackDrilldown into anchorDrilldown into trackDrilldown into protectingAirspaceDrilldown into availabilityDrilldown into reverseDirectionTurnDrilldown into bidirectionalUseDrilldown into specialRefuellingDrilldown into helicopterRouteDrilldown into receiverChannelDrilldown into tankerChannelDrilldown into xbandRadarSettingDrilldown into radarBeaconSettingDrilldown into typeDrilldown into nameDrilldown into designatorDirectionDrilldown into designatorSuffixDrilldown into designatorNumberDrilldown into designatorPrefixXSD Diagram of AerialRefuellingPropertyGroup
Collapse XSD Schema Code:
<group name="AerialRefuellingPropertyGroup">
    <sequence>
        <element name="designatorPrefix" type="aixm:CodeAerialRefuellingPrefixType" nillable="true" minOccurs="0" />
        <element name="designatorNumber" type="aixm:NoNumberType" nillable="true" minOccurs="0" />
        <element name="designatorSuffix" type="aixm:TextDesignatorType" nillable="true" minOccurs="0" />
        <element name="designatorDirection" type="aixm:CodeCardinalDirectionType" nillable="true" minOccurs="0" />
        <element name="name" type="aixm:TextNameType" nillable="true" minOccurs="0" />
        <element name="type" type="aixm:CodeAerialRefuellingType" nillable="true" minOccurs="0" />
        <element name="radarBeaconSetting" type="aixm:NoNumberType" nillable="true" minOccurs="0" />
        <element name="xbandRadarSetting" type="aixm:NoNumberType" nillable="true" minOccurs="0" />
        <element name="tankerChannel" type="aixm:CodeTACANChannelType" nillable="true" minOccurs="0" />
        <element name="receiverChannel" type="aixm:CodeTACANChannelType" nillable="true" minOccurs="0" />
        <element name="helicopterRoute" type="aixm:CodeYesNoType" nillable="true" minOccurs="0" />
        <element name="specialRefuelling" type="aixm:CodeYesNoType" nillable="true" minOccurs="0" />
        <element name="bidirectionalUse" type="aixm:CodeYesNoType" nillable="true" minOccurs="0" />
        <element name="reverseDirectionTurn" type="aixm:CodeDirectionTurnType" nillable="true" minOccurs="0" />
        <element name="availability" type="aixm:RouteAvailabilityPropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
        <element name="protectingAirspace" type="aixm:AirspacePropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
        <element name="track" type="aixm:AerialRefuellingTrackPropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
        <element name="anchor" type="aixm:AerialRefuellingAnchorPropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
        <element name="oppositeTrack" type="aixm:AerialRefuellingPropertyType" nillable="true" minOccurs="0" maxOccurs="1" />
        <element name="managingOrganisation" type="aixm:AuthorityForAerialRefuellingPropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
        <element name="annotation" type="aixm:NotePropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
    </sequence>
</group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
designatorPrefix aixm:designatorPrefix 0 (1)
designatorNumber aixm:designatorNumber 0 (1)
designatorSuffix aixm:designatorSuffix 0 (1)
designatorDirection aixm:designatorDirection 0 (1)
name aixm:name 0 (1)
type aixm:type 0 (1)
radarBeaconSetting aixm:radarBeaconSetting 0 (1)
xbandRadarSetting aixm:xbandRadarSetting 0 (1)
tankerChannel aixm:tankerChannel 0 (1)
receiverChannel aixm:receiverChannel 0 (1)
helicopterRoute aixm:helicopterRoute 0 (1)
specialRefuelling aixm:specialRefuelling 0 (1)
bidirectionalUse aixm:bidirectionalUse 0 (1)
reverseDirectionTurn aixm:reverseDirectionTurn 0 (1)
availability aixm:availability 0 unbounded
protectingAirspace aixm:protectingAirspace 0 unbounded
track aixm:track 0 unbounded
anchor aixm:anchor 0 unbounded
oppositeTrack aixm:oppositeTrack 0 1
managingOrganisation aixm:managingOrganisation 0 unbounded
annotation aixm:annotation 0 unbounded
