Definition Type: Group
Name: AircraftCharacteristicPropertyGroup
Namespace: http://www.aixm.aero/schema/5.1.1
Containing Schema: AIXM_Features.xsd

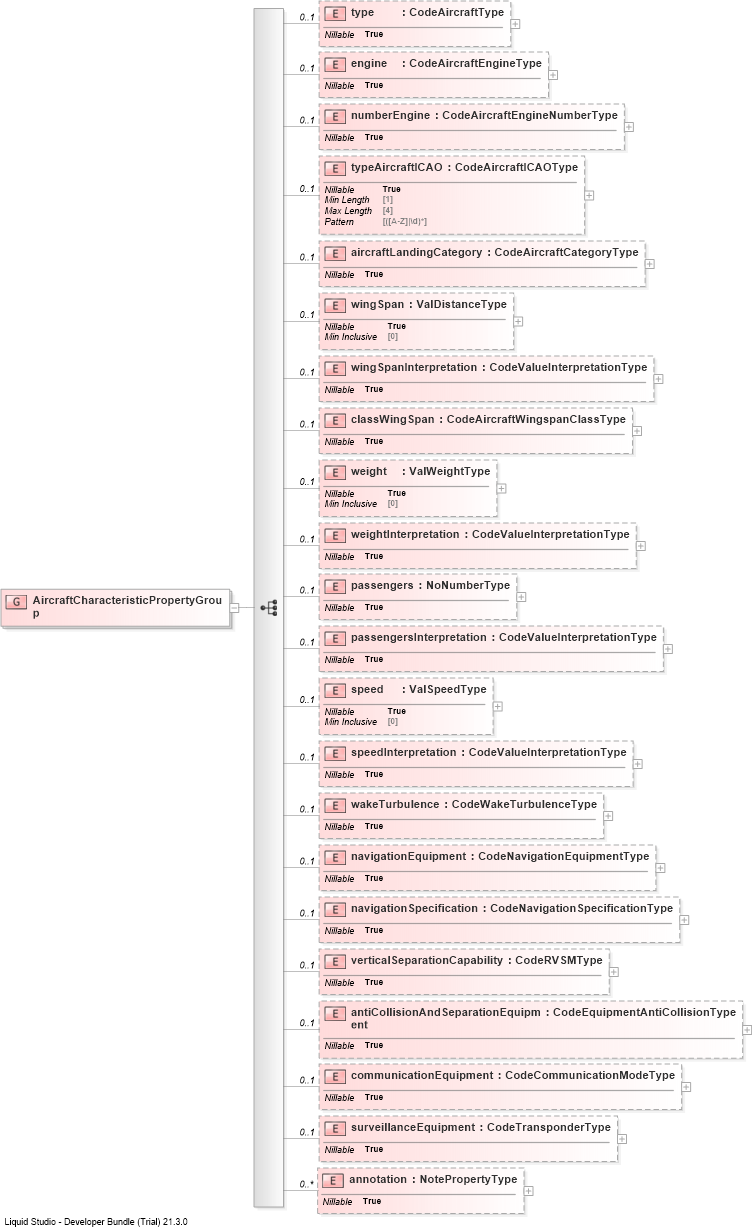

Collapse XSD Schema Diagram:
Drilldown into annotationDrilldown into surveillanceEquipmentDrilldown into communicationEquipmentDrilldown into antiCollisionAndSeparationEquipmentDrilldown into verticalSeparationCapabilityDrilldown into navigationSpecificationDrilldown into navigationEquipmentDrilldown into wakeTurbulenceDrilldown into speedInterpretationDrilldown into speedDrilldown into passengersInterpretationDrilldown into passengersDrilldown into weightInterpretationDrilldown into weightDrilldown into classWingSpanDrilldown into wingSpanInterpretationDrilldown into wingSpanDrilldown into aircraftLandingCategoryDrilldown into typeAircraftICAODrilldown into numberEngineDrilldown into engineDrilldown into typeXSD Diagram of AircraftCharacteristicPropertyGroup
Collapse XSD Schema Code:
<group name="AircraftCharacteristicPropertyGroup">
    <sequence>
        <element name="type" type="aixm:CodeAircraftType" nillable="true" minOccurs="0" />
        <element name="engine" type="aixm:CodeAircraftEngineType" nillable="true" minOccurs="0" />
        <element name="numberEngine" type="aixm:CodeAircraftEngineNumberType" nillable="true" minOccurs="0" />
        <element name="typeAircraftICAO" type="aixm:CodeAircraftICAOType" nillable="true" minOccurs="0" />
        <element name="aircraftLandingCategory" type="aixm:CodeAircraftCategoryType" nillable="true" minOccurs="0" />
        <element name="wingSpan" type="aixm:ValDistanceType" nillable="true" minOccurs="0" />
        <element name="wingSpanInterpretation" type="aixm:CodeValueInterpretationType" nillable="true" minOccurs="0" />
        <element name="classWingSpan" type="aixm:CodeAircraftWingspanClassType" nillable="true" minOccurs="0" />
        <element name="weight" type="aixm:ValWeightType" nillable="true" minOccurs="0" />
        <element name="weightInterpretation" type="aixm:CodeValueInterpretationType" nillable="true" minOccurs="0" />
        <element name="passengers" type="aixm:NoNumberType" nillable="true" minOccurs="0" />
        <element name="passengersInterpretation" type="aixm:CodeValueInterpretationType" nillable="true" minOccurs="0" />
        <element name="speed" type="aixm:ValSpeedType" nillable="true" minOccurs="0" />
        <element name="speedInterpretation" type="aixm:CodeValueInterpretationType" nillable="true" minOccurs="0" />
        <element name="wakeTurbulence" type="aixm:CodeWakeTurbulenceType" nillable="true" minOccurs="0" />
        <element name="navigationEquipment" type="aixm:CodeNavigationEquipmentType" nillable="true" minOccurs="0" />
        <element name="navigationSpecification" type="aixm:CodeNavigationSpecificationType" nillable="true" minOccurs="0" />
        <element name="verticalSeparationCapability" type="aixm:CodeRVSMType" nillable="true" minOccurs="0" />
        <element name="antiCollisionAndSeparationEquipment" type="aixm:CodeEquipmentAntiCollisionType" nillable="true" minOccurs="0" />
        <element name="communicationEquipment" type="aixm:CodeCommunicationModeType" nillable="true" minOccurs="0" />
        <element name="surveillanceEquipment" type="aixm:CodeTransponderType" nillable="true" minOccurs="0" />
        <element name="annotation" type="aixm:NotePropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
    </sequence>
</group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
type aixm:type 0 (1)
engine aixm:engine 0 (1)
numberEngine aixm:numberEngine 0 (1)
typeAircraftICAO aixm:typeAircraftICAO 0 (1)
aircraftLandingCategory aixm:aircraftLandingCategory 0 (1)
wingSpan aixm:wingSpan 0 (1)
wingSpanInterpretation aixm:wingSpanInterpretation 0 (1)
classWingSpan aixm:classWingSpan 0 (1)
weight aixm:weight 0 (1)
weightInterpretation aixm:weightInterpretation 0 (1)
passengers aixm:passengers 0 (1)
passengersInterpretation aixm:passengersInterpretation 0 (1)
speed aixm:speed 0 (1)
speedInterpretation aixm:speedInterpretation 0 (1)
wakeTurbulence aixm:wakeTurbulence 0 (1)
navigationEquipment aixm:navigationEquipment 0 (1)
navigationSpecification aixm:navigationSpecification 0 (1)
verticalSeparationCapability aixm:verticalSeparationCapability 0 (1)
antiCollisionAndSeparationEquipment aixm:antiCollisionAndSeparationEquipment 0 (1)
communicationEquipment aixm:communicationEquipment 0 (1)
surveillanceEquipment aixm:surveillanceEquipment 0 (1)
annotation aixm:annotation 0 unbounded
