Documentation for AIXM 5.1.1
Definition Type: Group
Name: AircraftStandPropertyGroup
Namespace: http://www.aixm.aero/schema/5.1.1
Containing Schema: AIXM_Features.xsd

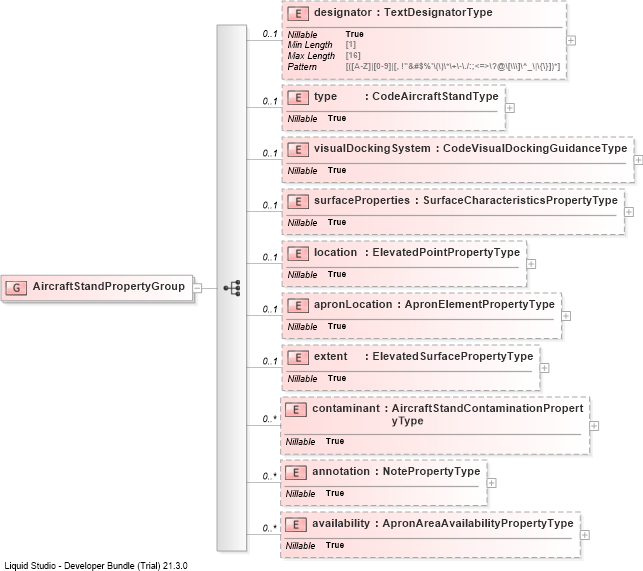

Collapse XSD Schema Diagram:
Drilldown into availabilityDrilldown into annotationDrilldown into contaminantDrilldown into extentDrilldown into apronLocationDrilldown into locationDrilldown into surfacePropertiesDrilldown into visualDockingSystemDrilldown into typeDrilldown into designatorXSD Diagram of AircraftStandPropertyGroup
Collapse XSD Schema Code:
<group name="AircraftStandPropertyGroup">
    <sequence>
        <element name="designator" type="aixm:TextDesignatorType" nillable="true" minOccurs="0" />
        <element name="type" type="aixm:CodeAircraftStandType" nillable="true" minOccurs="0" />
        <element name="visualDockingSystem" type="aixm:CodeVisualDockingGuidanceType" nillable="true" minOccurs="0" />
        <element name="surfaceProperties" type="aixm:SurfaceCharacteristicsPropertyType" nillable="true" minOccurs="0" maxOccurs="1" />
        <element name="location" type="aixm:ElevatedPointPropertyType" nillable="true" minOccurs="0" maxOccurs="1" />
        <element name="apronLocation" type="aixm:ApronElementPropertyType" nillable="true" minOccurs="0" maxOccurs="1" />
        <element name="extent" type="aixm:ElevatedSurfacePropertyType" nillable="true" minOccurs="0" maxOccurs="1" />
        <element name="contaminant" type="aixm:AircraftStandContaminationPropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
        <element name="annotation" type="aixm:NotePropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
        <element name="availability" type="aixm:ApronAreaAvailabilityPropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
    </sequence>
</group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
designator aixm:designator 0 (1)
type aixm:type 0 (1)
visualDockingSystem aixm:visualDockingSystem 0 (1)
surfaceProperties aixm:surfaceProperties 0 1
location aixm:location 0 1
apronLocation aixm:apronLocation 0 1
extent aixm:extent 0 1
contaminant aixm:contaminant 0 unbounded
annotation aixm:annotation 0 unbounded
availability aixm:availability 0 unbounded
