Documentation for AIXM 5.1.1
Definition Type: Group
Name: AirportHeliportPropertyGroup
Namespace: http://www.aixm.aero/schema/5.1.1
Containing Schema: AIXM_Features.xsd

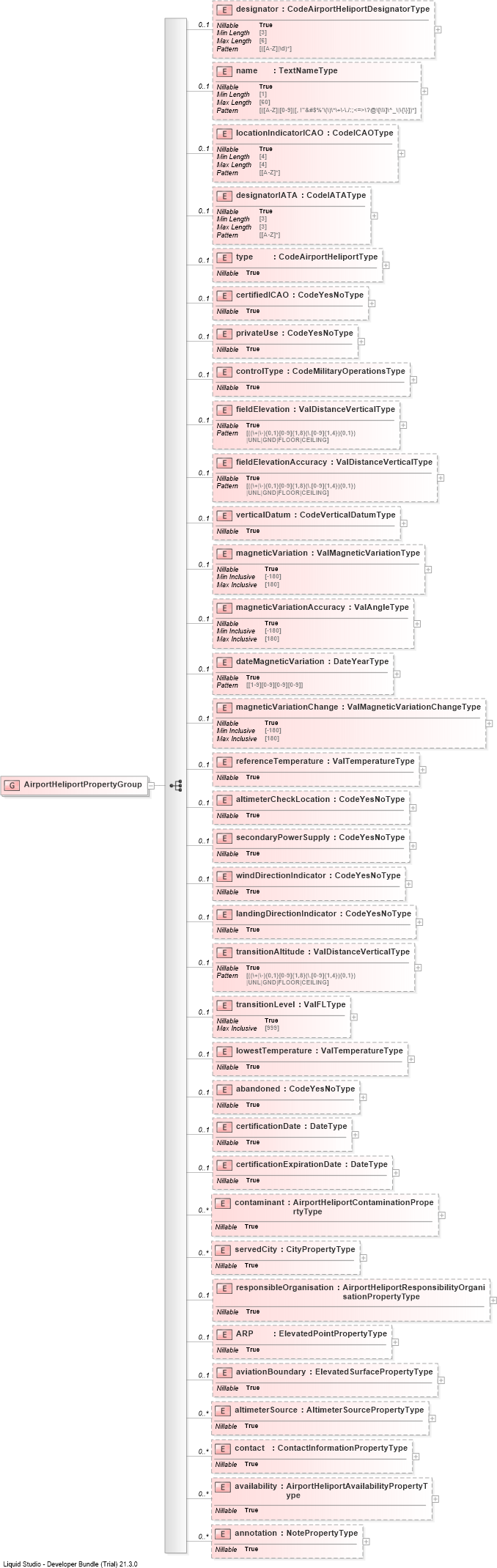

Collapse XSD Schema Diagram:
Drilldown into annotationDrilldown into availabilityDrilldown into contactDrilldown into altimeterSourceDrilldown into aviationBoundaryDrilldown into ARPDrilldown into responsibleOrganisationDrilldown into servedCityDrilldown into contaminantDrilldown into certificationExpirationDateDrilldown into certificationDateDrilldown into abandonedDrilldown into lowestTemperatureDrilldown into transitionLevelDrilldown into transitionAltitudeDrilldown into landingDirectionIndicatorDrilldown into windDirectionIndicatorDrilldown into secondaryPowerSupplyDrilldown into altimeterCheckLocationDrilldown into referenceTemperatureDrilldown into magneticVariationChangeDrilldown into dateMagneticVariationDrilldown into magneticVariationAccuracyDrilldown into magneticVariationDrilldown into verticalDatumDrilldown into fieldElevationAccuracyDrilldown into fieldElevationDrilldown into controlTypeDrilldown into privateUseDrilldown into certifiedICAODrilldown into typeDrilldown into designatorIATADrilldown into locationIndicatorICAODrilldown into nameDrilldown into designatorXSD Diagram of AirportHeliportPropertyGroup
Collapse XSD Schema Code:
<group name="AirportHeliportPropertyGroup">
    <sequence>
        <element name="designator" type="aixm:CodeAirportHeliportDesignatorType" nillable="true" minOccurs="0" />
        <element name="name" type="aixm:TextNameType" nillable="true" minOccurs="0" />
        <element name="locationIndicatorICAO" type="aixm:CodeICAOType" nillable="true" minOccurs="0" />
        <element name="designatorIATA" type="aixm:CodeIATAType" nillable="true" minOccurs="0" />
        <element name="type" type="aixm:CodeAirportHeliportType" nillable="true" minOccurs="0" />
        <element name="certifiedICAO" type="aixm:CodeYesNoType" nillable="true" minOccurs="0" />
        <element name="privateUse" type="aixm:CodeYesNoType" nillable="true" minOccurs="0" />
        <element name="controlType" type="aixm:CodeMilitaryOperationsType" nillable="true" minOccurs="0" />
        <element name="fieldElevation" type="aixm:ValDistanceVerticalType" nillable="true" minOccurs="0" />
        <element name="fieldElevationAccuracy" type="aixm:ValDistanceVerticalType" nillable="true" minOccurs="0" />
        <element name="verticalDatum" type="aixm:CodeVerticalDatumType" nillable="true" minOccurs="0" />
        <element name="magneticVariation" type="aixm:ValMagneticVariationType" nillable="true" minOccurs="0" />
        <element name="magneticVariationAccuracy" type="aixm:ValAngleType" nillable="true" minOccurs="0" />
        <element name="dateMagneticVariation" type="aixm:DateYearType" nillable="true" minOccurs="0" />
        <element name="magneticVariationChange" type="aixm:ValMagneticVariationChangeType" nillable="true" minOccurs="0" />
        <element name="referenceTemperature" type="aixm:ValTemperatureType" nillable="true" minOccurs="0" />
        <element name="altimeterCheckLocation" type="aixm:CodeYesNoType" nillable="true" minOccurs="0" />
        <element name="secondaryPowerSupply" type="aixm:CodeYesNoType" nillable="true" minOccurs="0" />
        <element name="windDirectionIndicator" type="aixm:CodeYesNoType" nillable="true" minOccurs="0" />
        <element name="landingDirectionIndicator" type="aixm:CodeYesNoType" nillable="true" minOccurs="0" />
        <element name="transitionAltitude" type="aixm:ValDistanceVerticalType" nillable="true" minOccurs="0" />
        <element name="transitionLevel" type="aixm:ValFLType" nillable="true" minOccurs="0" />
        <element name="lowestTemperature" type="aixm:ValTemperatureType" nillable="true" minOccurs="0" />
        <element name="abandoned" type="aixm:CodeYesNoType" nillable="true" minOccurs="0" />
        <element name="certificationDate" type="aixm:DateType" nillable="true" minOccurs="0" />
        <element name="certificationExpirationDate" type="aixm:DateType" nillable="true" minOccurs="0" />
        <element name="contaminant" type="aixm:AirportHeliportContaminationPropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
        <element name="servedCity" type="aixm:CityPropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
        <element name="responsibleOrganisation" type="aixm:AirportHeliportResponsibilityOrganisationPropertyType" nillable="true" minOccurs="0" maxOccurs="1" />
        <element name="ARP" type="aixm:ElevatedPointPropertyType" nillable="true" minOccurs="0" maxOccurs="1" />
        <element name="aviationBoundary" type="aixm:ElevatedSurfacePropertyType" nillable="true" minOccurs="0" maxOccurs="1" />
        <element name="altimeterSource" type="aixm:AltimeterSourcePropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
        <element name="contact" type="aixm:ContactInformationPropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
        <element name="availability" type="aixm:AirportHeliportAvailabilityPropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
        <element name="annotation" type="aixm:NotePropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
    </sequence>
</group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
designator aixm:designator 0 (1)
name aixm:name 0 (1)
locationIndicatorICAO aixm:locationIndicatorICAO 0 (1)
designatorIATA aixm:designatorIATA 0 (1)
type aixm:type 0 (1)
certifiedICAO aixm:certifiedICAO 0 (1)
privateUse aixm:privateUse 0 (1)
controlType aixm:controlType 0 (1)
fieldElevation aixm:fieldElevation 0 (1)
fieldElevationAccuracy aixm:fieldElevationAccuracy 0 (1)
verticalDatum aixm:verticalDatum 0 (1)
magneticVariation aixm:magneticVariation 0 (1)
magneticVariationAccuracy aixm:magneticVariationAccuracy 0 (1)
dateMagneticVariation aixm:dateMagneticVariation 0 (1)
magneticVariationChange aixm:magneticVariationChange 0 (1)
referenceTemperature aixm:referenceTemperature 0 (1)
altimeterCheckLocation aixm:altimeterCheckLocation 0 (1)
secondaryPowerSupply aixm:secondaryPowerSupply 0 (1)
windDirectionIndicator aixm:windDirectionIndicator 0 (1)
landingDirectionIndicator aixm:landingDirectionIndicator 0 (1)
transitionAltitude aixm:transitionAltitude 0 (1)
transitionLevel aixm:transitionLevel 0 (1)
lowestTemperature aixm:lowestTemperature 0 (1)
abandoned aixm:abandoned 0 (1)
certificationDate aixm:certificationDate 0 (1)
certificationExpirationDate aixm:certificationExpirationDate 0 (1)
contaminant aixm:contaminant 0 unbounded
servedCity aixm:servedCity 0 unbounded
responsibleOrganisation aixm:responsibleOrganisation 0 1
ARP aixm:ARP 0 1
aviationBoundary aixm:aviationBoundary 0 1
altimeterSource aixm:altimeterSource 0 unbounded
contact aixm:contact 0 unbounded
availability aixm:availability 0 unbounded
annotation aixm:annotation 0 unbounded
