Definition Type: Group
Name: AirportHeliportProtectionAreaPropertyGroup
Namespace: http://www.aixm.aero/schema/5.1.1
Containing Schema: AIXM_Features.xsd

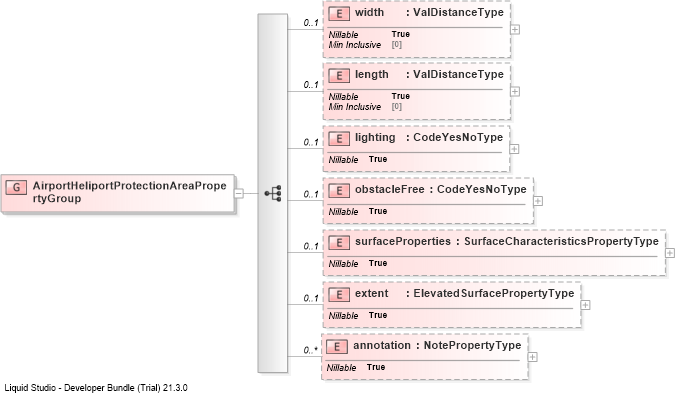

Collapse XSD Schema Diagram:
Drilldown into annotationDrilldown into extentDrilldown into surfacePropertiesDrilldown into obstacleFreeDrilldown into lightingDrilldown into lengthDrilldown into widthXSD Diagram of AirportHeliportProtectionAreaPropertyGroup
Collapse XSD Schema Code:
<group name="AirportHeliportProtectionAreaPropertyGroup">
    <sequence>
        <element name="width" type="aixm:ValDistanceType" nillable="true" minOccurs="0" />
        <element name="length" type="aixm:ValDistanceType" nillable="true" minOccurs="0" />
        <element name="lighting" type="aixm:CodeYesNoType" nillable="true" minOccurs="0" />
        <element name="obstacleFree" type="aixm:CodeYesNoType" nillable="true" minOccurs="0" />
        <element name="surfaceProperties" type="aixm:SurfaceCharacteristicsPropertyType" nillable="true" minOccurs="0" maxOccurs="1" />
        <element name="extent" type="aixm:ElevatedSurfacePropertyType" nillable="true" minOccurs="0" maxOccurs="1" />
        <element name="annotation" type="aixm:NotePropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
    </sequence>
</group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
width aixm:width 0 (1)
length aixm:length 0 (1)
lighting aixm:lighting 0 (1)
obstacleFree aixm:obstacleFree 0 (1)
surfaceProperties aixm:surfaceProperties 0 1
extent aixm:extent 0 1
annotation aixm:annotation 0 unbounded
