Documentation for AIXM 5.1.1
Definition Type: Group
Name: AirportHotSpotPropertyGroup
Namespace: http://www.aixm.aero/schema/5.1.1
Containing Schema: AIXM_Features.xsd

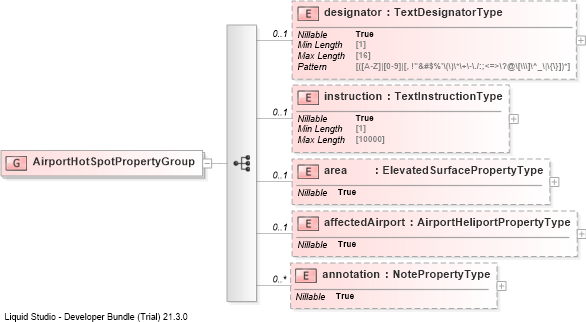

Collapse XSD Schema Diagram:
Drilldown into annotationDrilldown into affectedAirportDrilldown into areaDrilldown into instructionDrilldown into designatorXSD Diagram of AirportHotSpotPropertyGroup
Collapse XSD Schema Code:
<group name="AirportHotSpotPropertyGroup">
    <sequence>
        <element name="designator" type="aixm:TextDesignatorType" nillable="true" minOccurs="0" />
        <element name="instruction" type="aixm:TextInstructionType" nillable="true" minOccurs="0" />
        <element name="area" type="aixm:ElevatedSurfacePropertyType" nillable="true" minOccurs="0" maxOccurs="1" />
        <element name="affectedAirport" type="aixm:AirportHeliportPropertyType" nillable="true" minOccurs="0" maxOccurs="1" />
        <element name="annotation" type="aixm:NotePropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
    </sequence>
</group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
designator aixm:designator 0 (1)
instruction aixm:instruction 0 (1)
area aixm:area 0 1
affectedAirport aixm:affectedAirport 0 1
annotation aixm:annotation 0 unbounded
