Documentation for AIXM 5.1.1
Definition Type: Group
Name: AirspaceActivationPropertyGroup
Namespace: http://www.aixm.aero/schema/5.1.1
Containing Schema: AIXM_Features.xsd

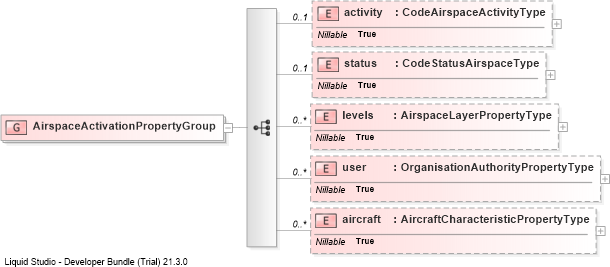

Collapse XSD Schema Diagram:
Drilldown into aircraftDrilldown into userDrilldown into levelsDrilldown into statusDrilldown into activityXSD Diagram of AirspaceActivationPropertyGroup
Collapse XSD Schema Code:
<group name="AirspaceActivationPropertyGroup">
    <sequence>
        <element name="activity" type="aixm:CodeAirspaceActivityType" nillable="true" minOccurs="0" />
        <element name="status" type="aixm:CodeStatusAirspaceType" nillable="true" minOccurs="0" />
        <element name="levels" type="aixm:AirspaceLayerPropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
        <element name="user" type="aixm:OrganisationAuthorityPropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
        <element name="aircraft" type="aixm:AircraftCharacteristicPropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
    </sequence>
</group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
activity aixm:activity 0 (1)
status aixm:status 0 (1)
levels aixm:levels 0 unbounded
user aixm:user 0 unbounded
aircraft aixm:aircraft 0 unbounded
