Documentation for AIXM 5.1.1
Definition Type: Group
Name: AirspaceBorderCrossingPropertyGroup
Namespace: http://www.aixm.aero/schema/5.1.1
Containing Schema: AIXM_Features.xsd

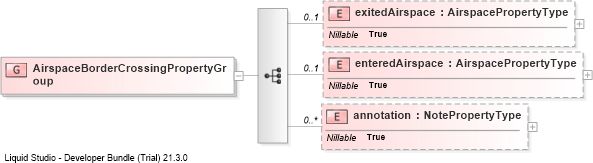

Collapse XSD Schema Diagram:
Drilldown into annotationDrilldown into enteredAirspaceDrilldown into exitedAirspaceXSD Diagram of AirspaceBorderCrossingPropertyGroup
Collapse XSD Schema Code:
<group name="AirspaceBorderCrossingPropertyGroup">
    <sequence>
        <element name="exitedAirspace" type="aixm:AirspacePropertyType" nillable="true" minOccurs="0" maxOccurs="1" />
        <element name="enteredAirspace" type="aixm:AirspacePropertyType" nillable="true" minOccurs="0" maxOccurs="1" />
        <element name="annotation" type="aixm:NotePropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
    </sequence>
</group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
exitedAirspace aixm:exitedAirspace 0 1
enteredAirspace aixm:enteredAirspace 0 1
annotation aixm:annotation 0 unbounded
