Documentation for AIXM 5.1.1
Definition Type: Group
Name: AirspaceGeometryComponentPropertyGroup
Namespace: http://www.aixm.aero/schema/5.1.1
Containing Schema: AIXM_Features.xsd

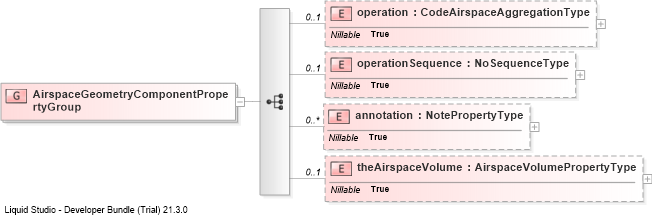

Collapse XSD Schema Diagram:
Drilldown into theAirspaceVolumeDrilldown into annotationDrilldown into operationSequenceDrilldown into operationXSD Diagram of AirspaceGeometryComponentPropertyGroup
Collapse XSD Schema Code:
<group name="AirspaceGeometryComponentPropertyGroup">
    <sequence>
        <element name="operation" type="aixm:CodeAirspaceAggregationType" nillable="true" minOccurs="0" />
        <element name="operationSequence" type="aixm:NoSequenceType" nillable="true" minOccurs="0" />
        <element name="annotation" type="aixm:NotePropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
        <element name="theAirspaceVolume" type="aixm:AirspaceVolumePropertyType" nillable="true" minOccurs="0" />
    </sequence>
</group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
operation aixm:operation 0 (1)
operationSequence aixm:operationSequence 0 (1)
annotation aixm:annotation 0 unbounded
theAirspaceVolume aixm:theAirspaceVolume 0 (1)
