Documentation for AIXM 5.1.1
Definition Type: Group
Name: AirspaceLayerPropertyGroup
Namespace: http://www.aixm.aero/schema/5.1.1
Containing Schema: AIXM_Features.xsd

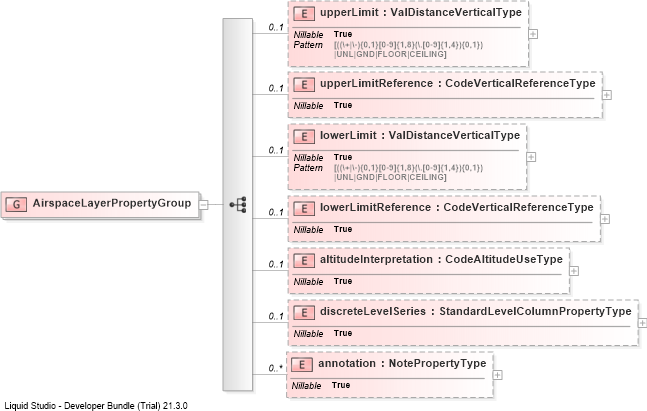

Collapse XSD Schema Diagram:
Drilldown into annotationDrilldown into discreteLevelSeriesDrilldown into altitudeInterpretationDrilldown into lowerLimitReferenceDrilldown into lowerLimitDrilldown into upperLimitReferenceDrilldown into upperLimitXSD Diagram of AirspaceLayerPropertyGroup
Collapse XSD Schema Code:
<group name="AirspaceLayerPropertyGroup">
    <sequence>
        <element name="upperLimit" type="aixm:ValDistanceVerticalType" nillable="true" minOccurs="0" />
        <element name="upperLimitReference" type="aixm:CodeVerticalReferenceType" nillable="true" minOccurs="0" />
        <element name="lowerLimit" type="aixm:ValDistanceVerticalType" nillable="true" minOccurs="0" />
        <element name="lowerLimitReference" type="aixm:CodeVerticalReferenceType" nillable="true" minOccurs="0" />
        <element name="altitudeInterpretation" type="aixm:CodeAltitudeUseType" nillable="true" minOccurs="0" />
        <element name="discreteLevelSeries" type="aixm:StandardLevelColumnPropertyType" nillable="true" minOccurs="0" maxOccurs="1" />
        <element name="annotation" type="aixm:NotePropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
    </sequence>
</group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
upperLimit aixm:upperLimit 0 (1)
upperLimitReference aixm:upperLimitReference 0 (1)
lowerLimit aixm:lowerLimit 0 (1)
lowerLimitReference aixm:lowerLimitReference 0 (1)
altitudeInterpretation aixm:altitudeInterpretation 0 (1)
discreteLevelSeries aixm:discreteLevelSeries 0 1
annotation aixm:annotation 0 unbounded
