Documentation for AIXM 5.1.1
Definition Type: Group
Name: AirspacePropertyGroup
Namespace: http://www.aixm.aero/schema/5.1.1
Containing Schema: AIXM_Features.xsd

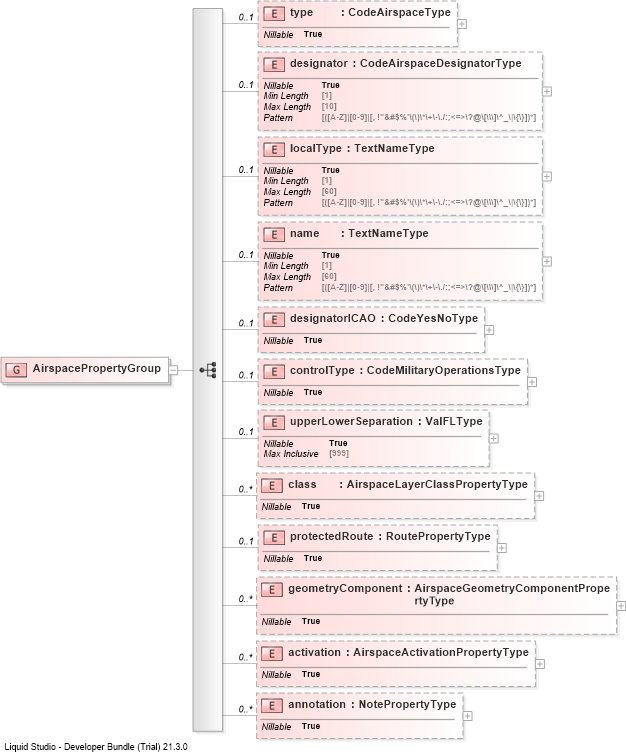

Collapse XSD Schema Diagram:
Drilldown into annotationDrilldown into activationDrilldown into geometryComponentDrilldown into protectedRouteDrilldown into classDrilldown into upperLowerSeparationDrilldown into controlTypeDrilldown into designatorICAODrilldown into nameDrilldown into localTypeDrilldown into designatorDrilldown into typeXSD Diagram of AirspacePropertyGroup
Collapse XSD Schema Code:
<group name="AirspacePropertyGroup">
    <sequence>
        <element name="type" type="aixm:CodeAirspaceType" nillable="true" minOccurs="0" />
        <element name="designator" type="aixm:CodeAirspaceDesignatorType" nillable="true" minOccurs="0" />
        <element name="localType" type="aixm:TextNameType" nillable="true" minOccurs="0" />
        <element name="name" type="aixm:TextNameType" nillable="true" minOccurs="0" />
        <element name="designatorICAO" type="aixm:CodeYesNoType" nillable="true" minOccurs="0" />
        <element name="controlType" type="aixm:CodeMilitaryOperationsType" nillable="true" minOccurs="0" />
        <element name="upperLowerSeparation" type="aixm:ValFLType" nillable="true" minOccurs="0" />
        <element name="class" type="aixm:AirspaceLayerClassPropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
        <element name="protectedRoute" type="aixm:RoutePropertyType" nillable="true" minOccurs="0" maxOccurs="1" />
        <element name="geometryComponent" type="aixm:AirspaceGeometryComponentPropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
        <element name="activation" type="aixm:AirspaceActivationPropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
        <element name="annotation" type="aixm:NotePropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
    </sequence>
</group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
type aixm:type 0 (1)
designator aixm:designator 0 (1)
localType aixm:localType 0 (1)
name aixm:name 0 (1)
designatorICAO aixm:designatorICAO 0 (1)
controlType aixm:controlType 0 (1)
upperLowerSeparation aixm:upperLowerSeparation 0 (1)
class aixm:class 0 unbounded
protectedRoute aixm:protectedRoute 0 1
geometryComponent aixm:geometryComponent 0 unbounded
activation aixm:activation 0 unbounded
annotation aixm:annotation 0 unbounded
