Documentation for AIXM 5.1.1
Definition Type: Group
Name: AltimeterSourcePropertyGroup
Namespace: http://www.aixm.aero/schema/5.1.1
Containing Schema: AIXM_Features.xsd

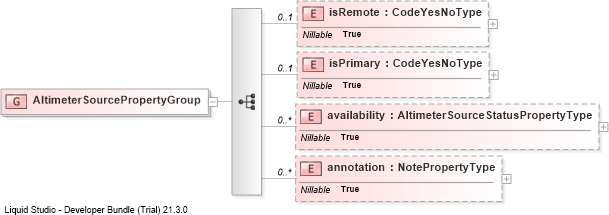

Collapse XSD Schema Diagram:
Drilldown into annotationDrilldown into availabilityDrilldown into isPrimaryDrilldown into isRemoteXSD Diagram of AltimeterSourcePropertyGroup
Collapse XSD Schema Code:
<group name="AltimeterSourcePropertyGroup">
    <sequence>
        <element name="isRemote" type="aixm:CodeYesNoType" nillable="true" minOccurs="0" />
        <element name="isPrimary" type="aixm:CodeYesNoType" nillable="true" minOccurs="0" />
        <element name="availability" type="aixm:AltimeterSourceStatusPropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
        <element name="annotation" type="aixm:NotePropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
    </sequence>
</group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
isRemote aixm:isRemote 0 (1)
isPrimary aixm:isPrimary 0 (1)
availability aixm:availability 0 unbounded
annotation aixm:annotation 0 unbounded
