Documentation for AIXM 5.1.1
Definition Type: Group
Name: AltitudeAdjustmentPropertyGroup
Namespace: http://www.aixm.aero/schema/5.1.1
Containing Schema: AIXM_Features.xsd

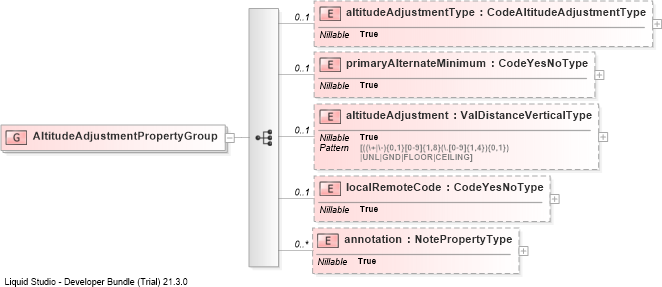

Collapse XSD Schema Diagram:
Drilldown into annotationDrilldown into localRemoteCodeDrilldown into altitudeAdjustmentDrilldown into primaryAlternateMinimumDrilldown into altitudeAdjustmentTypeXSD Diagram of AltitudeAdjustmentPropertyGroup
Collapse XSD Schema Code:
<group name="AltitudeAdjustmentPropertyGroup">
    <sequence>
        <element name="altitudeAdjustmentType" type="aixm:CodeAltitudeAdjustmentType" nillable="true" minOccurs="0" />
        <element name="primaryAlternateMinimum" type="aixm:CodeYesNoType" nillable="true" minOccurs="0" />
        <element name="altitudeAdjustment" type="aixm:ValDistanceVerticalType" nillable="true" minOccurs="0" />
        <element name="localRemoteCode" type="aixm:CodeYesNoType" nillable="true" minOccurs="0" />
        <element name="annotation" type="aixm:NotePropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
    </sequence>
</group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
altitudeAdjustmentType aixm:altitudeAdjustmentType 0 (1)
primaryAlternateMinimum aixm:primaryAlternateMinimum 0 (1)
altitudeAdjustment aixm:altitudeAdjustment 0 (1)
localRemoteCode aixm:localRemoteCode 0 (1)
annotation aixm:annotation 0 unbounded
