Documentation for AIXM 5.1.1
Definition Type: Group
Name: ApproachAltitudeTablePropertyGroup
Namespace: http://www.aixm.aero/schema/5.1.1
Containing Schema: AIXM_Features.xsd

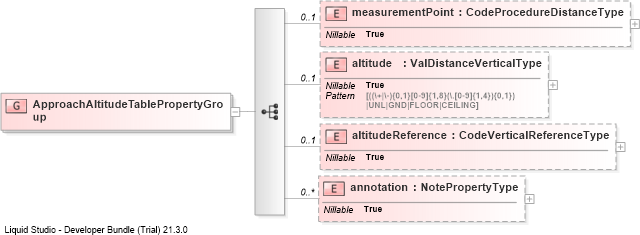

Collapse XSD Schema Diagram:
Drilldown into annotationDrilldown into altitudeReferenceDrilldown into altitudeDrilldown into measurementPointXSD Diagram of ApproachAltitudeTablePropertyGroup
Collapse XSD Schema Code:
<group name="ApproachAltitudeTablePropertyGroup">
    <sequence>
        <element name="measurementPoint" type="aixm:CodeProcedureDistanceType" nillable="true" minOccurs="0" />
        <element name="altitude" type="aixm:ValDistanceVerticalType" nillable="true" minOccurs="0" />
        <element name="altitudeReference" type="aixm:CodeVerticalReferenceType" nillable="true" minOccurs="0" />
        <element name="annotation" type="aixm:NotePropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
    </sequence>
</group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
measurementPoint aixm:measurementPoint 0 (1)
altitude aixm:altitude 0 (1)
altitudeReference aixm:altitudeReference 0 (1)
annotation aixm:annotation 0 unbounded
