Documentation for AIXM 5.1.1
Definition Type: Group
Name: ApproachConditionPropertyGroup
Namespace: http://www.aixm.aero/schema/5.1.1
Containing Schema: AIXM_Features.xsd

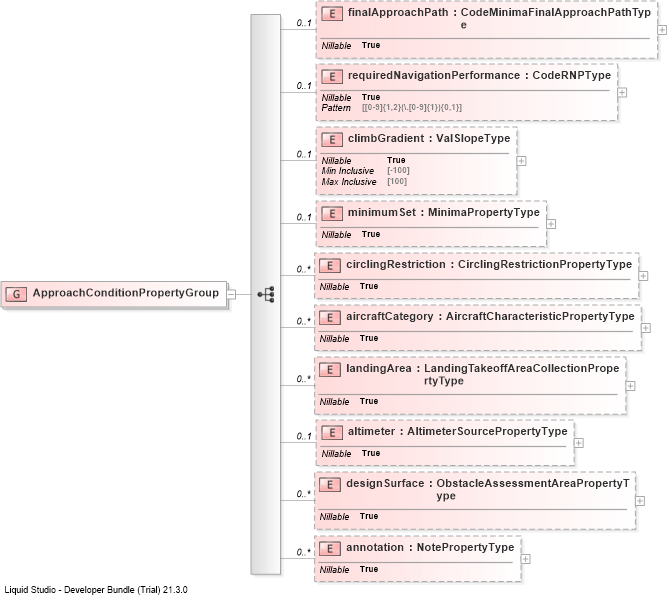

Collapse XSD Schema Diagram:
Drilldown into annotationDrilldown into designSurfaceDrilldown into altimeterDrilldown into landingAreaDrilldown into aircraftCategoryDrilldown into circlingRestrictionDrilldown into minimumSetDrilldown into climbGradientDrilldown into requiredNavigationPerformanceDrilldown into finalApproachPathXSD Diagram of ApproachConditionPropertyGroup
Collapse XSD Schema Code:
<group name="ApproachConditionPropertyGroup">
    <sequence>
        <element name="finalApproachPath" type="aixm:CodeMinimaFinalApproachPathType" nillable="true" minOccurs="0" />
        <element name="requiredNavigationPerformance" type="aixm:CodeRNPType" nillable="true" minOccurs="0" />
        <element name="climbGradient" type="aixm:ValSlopeType" nillable="true" minOccurs="0" />
        <element name="minimumSet" type="aixm:MinimaPropertyType" nillable="true" minOccurs="0" maxOccurs="1" />
        <element name="circlingRestriction" type="aixm:CirclingRestrictionPropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
        <element name="aircraftCategory" type="aixm:AircraftCharacteristicPropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
        <element name="landingArea" type="aixm:LandingTakeoffAreaCollectionPropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
        <element name="altimeter" type="aixm:AltimeterSourcePropertyType" nillable="true" minOccurs="0" maxOccurs="1" />
        <element name="designSurface" type="aixm:ObstacleAssessmentAreaPropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
        <element name="annotation" type="aixm:NotePropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
    </sequence>
</group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
finalApproachPath aixm:finalApproachPath 0 (1)
requiredNavigationPerformance aixm:requiredNavigationPerformance 0 (1)
climbGradient aixm:climbGradient 0 (1)
minimumSet aixm:minimumSet 0 1
circlingRestriction aixm:circlingRestriction 0 unbounded
aircraftCategory aixm:aircraftCategory 0 unbounded
landingArea aixm:landingArea 0 unbounded
altimeter aixm:altimeter 0 1
designSurface aixm:designSurface 0 unbounded
annotation aixm:annotation 0 unbounded
