Documentation for AIXM 5.1.1
Definition Type: Group
Name: ApproachTimingTablePropertyGroup
Namespace: http://www.aixm.aero/schema/5.1.1
Containing Schema: AIXM_Features.xsd

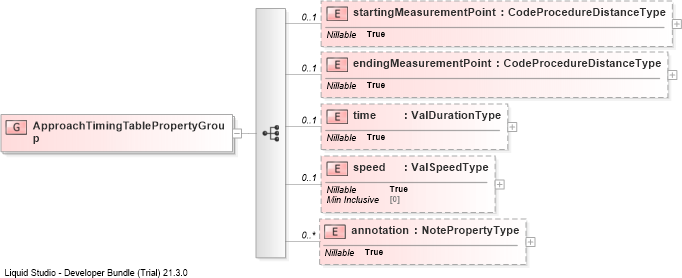

Collapse XSD Schema Diagram:
Drilldown into annotationDrilldown into speedDrilldown into timeDrilldown into endingMeasurementPointDrilldown into startingMeasurementPointXSD Diagram of ApproachTimingTablePropertyGroup
Collapse XSD Schema Code:
<group name="ApproachTimingTablePropertyGroup">
    <sequence>
        <element name="startingMeasurementPoint" type="aixm:CodeProcedureDistanceType" nillable="true" minOccurs="0" />
        <element name="endingMeasurementPoint" type="aixm:CodeProcedureDistanceType" nillable="true" minOccurs="0" />
        <element name="time" type="aixm:ValDurationType" nillable="true" minOccurs="0" />
        <element name="speed" type="aixm:ValSpeedType" nillable="true" minOccurs="0" />
        <element name="annotation" type="aixm:NotePropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
    </sequence>
</group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
startingMeasurementPoint aixm:startingMeasurementPoint 0 (1)
endingMeasurementPoint aixm:endingMeasurementPoint 0 (1)
time aixm:time 0 (1)
speed aixm:speed 0 (1)
annotation aixm:annotation 0 unbounded
