Documentation for AIXM 5.1.1
Definition Type: Group
Name: ApronAreaAvailabilityPropertyGroup
Namespace: http://www.aixm.aero/schema/5.1.1
Containing Schema: AIXM_Features.xsd
Collapse XSD Schema Diagram:

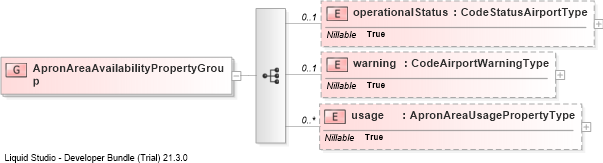

Drilldown into usageDrilldown into warningDrilldown into operationalStatusXSD Diagram of ApronAreaAvailabilityPropertyGroup
Collapse XSD Schema Code:
<group name="ApronAreaAvailabilityPropertyGroup">
    <sequence>
        <element name="operationalStatus" type="aixm:CodeStatusAirportType" nillable="true" minOccurs="0" />
        <element name="warning" type="aixm:CodeAirportWarningType" nillable="true" minOccurs="0" />
        <element name="usage" type="aixm:ApronAreaUsagePropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
    </sequence>
</group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
operationalStatus aixm:operationalStatus 0 (1)
warning aixm:warning 0 (1)
usage aixm:usage 0 unbounded
