Documentation for AIXM 5.1.1
Definition Type: Group
Name: ApronElementPropertyGroup
Namespace: http://www.aixm.aero/schema/5.1.1
Containing Schema: AIXM_Features.xsd

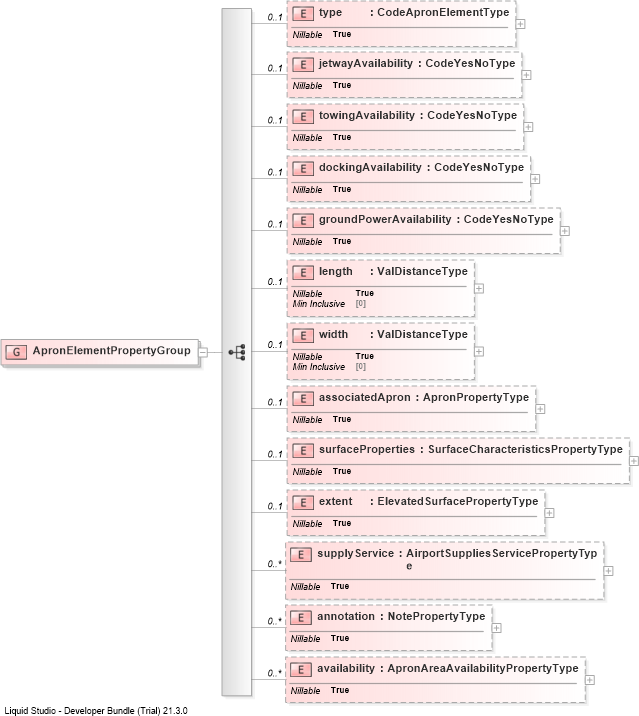

Collapse XSD Schema Diagram:
Drilldown into availabilityDrilldown into annotationDrilldown into supplyServiceDrilldown into extentDrilldown into surfacePropertiesDrilldown into associatedApronDrilldown into widthDrilldown into lengthDrilldown into groundPowerAvailabilityDrilldown into dockingAvailabilityDrilldown into towingAvailabilityDrilldown into jetwayAvailabilityDrilldown into typeXSD Diagram of ApronElementPropertyGroup
Collapse XSD Schema Code:
<group name="ApronElementPropertyGroup">
    <sequence>
        <element name="type" type="aixm:CodeApronElementType" nillable="true" minOccurs="0" />
        <element name="jetwayAvailability" type="aixm:CodeYesNoType" nillable="true" minOccurs="0" />
        <element name="towingAvailability" type="aixm:CodeYesNoType" nillable="true" minOccurs="0" />
        <element name="dockingAvailability" type="aixm:CodeYesNoType" nillable="true" minOccurs="0" />
        <element name="groundPowerAvailability" type="aixm:CodeYesNoType" nillable="true" minOccurs="0" />
        <element name="length" type="aixm:ValDistanceType" nillable="true" minOccurs="0" />
        <element name="width" type="aixm:ValDistanceType" nillable="true" minOccurs="0" />
        <element name="associatedApron" type="aixm:ApronPropertyType" nillable="true" minOccurs="0" maxOccurs="1" />
        <element name="surfaceProperties" type="aixm:SurfaceCharacteristicsPropertyType" nillable="true" minOccurs="0" maxOccurs="1" />
        <element name="extent" type="aixm:ElevatedSurfacePropertyType" nillable="true" minOccurs="0" maxOccurs="1" />
        <element name="supplyService" type="aixm:AirportSuppliesServicePropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
        <element name="annotation" type="aixm:NotePropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
        <element name="availability" type="aixm:ApronAreaAvailabilityPropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
    </sequence>
</group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
type aixm:type 0 (1)
jetwayAvailability aixm:jetwayAvailability 0 (1)
towingAvailability aixm:towingAvailability 0 (1)
dockingAvailability aixm:dockingAvailability 0 (1)
groundPowerAvailability aixm:groundPowerAvailability 0 (1)
length aixm:length 0 (1)
width aixm:width 0 (1)
associatedApron aixm:associatedApron 0 1
surfaceProperties aixm:surfaceProperties 0 1
extent aixm:extent 0 1
supplyService aixm:supplyService 0 unbounded
annotation aixm:annotation 0 unbounded
availability aixm:availability 0 unbounded
