Documentation for AIXM 5.1.1
Definition Type: Group
Name: ApronMarkingPropertyGroup
Namespace: http://www.aixm.aero/schema/5.1.1
Containing Schema: AIXM_Features.xsd

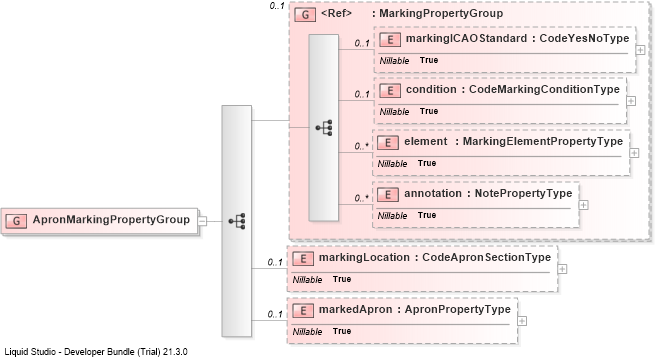

Collapse XSD Schema Diagram:
Drilldown into markedApronDrilldown into markingLocationDrilldown into annotationDrilldown into elementDrilldown into conditionDrilldown into markingICAOStandardDrilldown into MarkingPropertyGroupXSD Diagram of ApronMarkingPropertyGroup
Collapse XSD Schema Code:
<group name="ApronMarkingPropertyGroup">
    <sequence>
        <group ref="aixm:MarkingPropertyGroup" minOccurs="0" />
        <element name="markingLocation" type="aixm:CodeApronSectionType" nillable="true" minOccurs="0" />
        <element name="markedApron" type="aixm:ApronPropertyType" nillable="true" minOccurs="0" maxOccurs="1" />
    </sequence>
</group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
markingICAOStandard aixm:markingICAOStandard 0 (1)
condition aixm:condition 0 (1)
element aixm:element 0 unbounded
annotation aixm:annotation 0 unbounded
markingLocation aixm:markingLocation 0 (1)
markedApron aixm:markedApron 0 1
<xs:group> aixm:MarkingPropertyGroup 0 (1)
