Definition Type: ComplexType
Name: ArcByCenterPointType
Namespace: http://www.opengis.net/gml/3.2
Type: gml:AbstractCurveSegmentType
Containing Schema: geometryPrimitives.xsd
Abstract

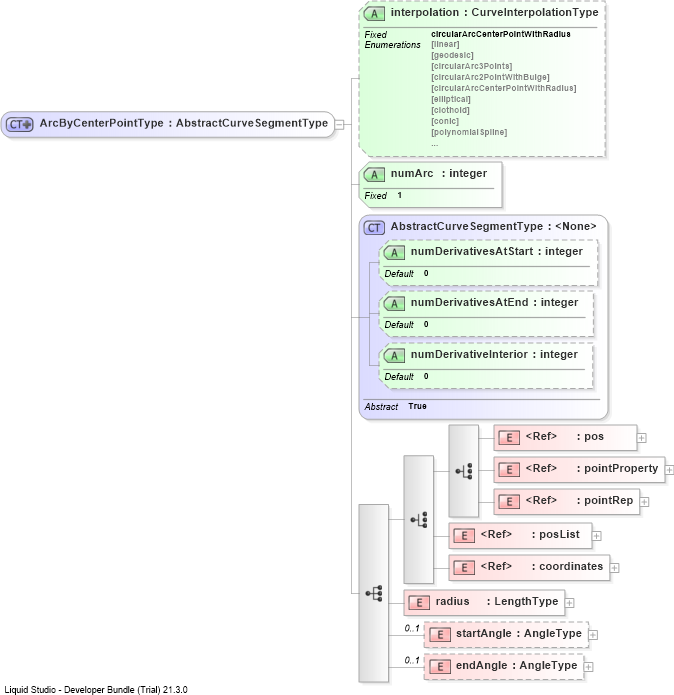

Collapse XSD Schema Diagram:
Drilldown into endAngleDrilldown into startAngleDrilldown into radiusDrilldown into coordinatesDrilldown into posListDrilldown into pointRepDrilldown into pointPropertyDrilldown into posDrilldown into numDerivativeInteriorDrilldown into numDerivativesAtEndDrilldown into numDerivativesAtStartDrilldown into AbstractCurveSegmentTypeDrilldown into numArcDrilldown into interpolationXSD Diagram of ArcByCenterPointType
Collapse XSD Schema Code:
<complexType name="ArcByCenterPointType">
    <complexContent>
        <extension base="gml:AbstractCurveSegmentType">
            <sequence>
                <choice>
                    <choice>
                        <element ref="gml:pos" />
                        <element ref="gml:pointProperty" />
                        <element ref="gml:pointRep" />
                    </choice>
                    <element ref="gml:posList" />
                    <element ref="gml:coordinates" />
                </choice>
                <element name="radius" type="gml:LengthType" />
                <element name="startAngle" type="gml:AngleType" minOccurs="0" />
                <element name="endAngle" type="gml:AngleType" minOccurs="0" />
            </sequence>
            <attribute name="interpolation" type="gml:CurveInterpolationType" fixed="circularArcCenterPointWithRadius" />
            <attribute name="numArc" type="integer" use="required" fixed="1" />
        </extension>
    </complexContent>
</complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
pos gml:pos (1) (1)
pointProperty gml:pointProperty (1) (1)
pointRep gml:pointRep (1) (1)
posList gml:posList (1) (1)
coordinates gml:coordinates (1) (1)
radius gml:radius (1) (1)
startAngle gml:startAngle 0 (1)
endAngle gml:endAngle 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
numDerivativesAtStart gml:numDerivativesAtStart 0 (Optional)
numDerivativesAtEnd gml:numDerivativesAtEnd 0 (Optional)
numDerivativeInterior gml:numDerivativeInterior 0 (Optional)
interpolation gml:interpolation (Optional)
numArc gml:numArc Required
Collapse Derivation Tree:
Collapse References:
gml:ArcByCenterPointgml:CircleByCenterPointType,
