Definition Type: Element
Name: ArcString
Namespace: http://www.opengis.net/gml/3.2
Type: gml:ArcStringType
Containing Schema: geometryPrimitives.xsd
Abstract
Documentation:
An ArcString is a curve segment that uses three-point circular arc interpolation ("circularArc3Points"). The number of arcs in the arc string may be explicitly stated in the attribute numArc. The number of control points in the arc string shall be 2 * numArc + 1.
The content model follows the general pattern for the encoding of curve segments.

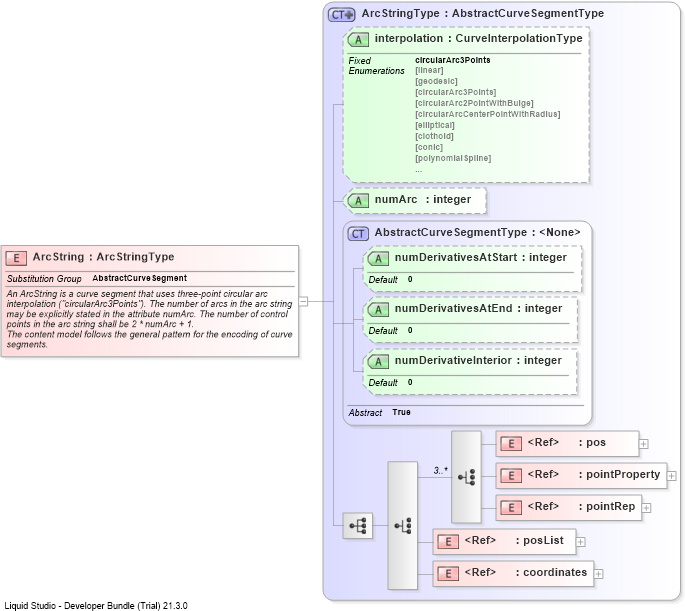

Collapse XSD Schema Diagram:
Drilldown into coordinatesDrilldown into posListDrilldown into pointRepDrilldown into pointPropertyDrilldown into posDrilldown into numDerivativeInteriorDrilldown into numDerivativesAtEndDrilldown into numDerivativesAtStartDrilldown into AbstractCurveSegmentTypeDrilldown into numArcDrilldown into interpolationDrilldown into ArcStringTypeXSD Diagram of ArcString
Collapse XSD Schema Code:
<element name="ArcString" type="gml:ArcStringType" substitutionGroup="gml:AbstractCurveSegment">
    <annotation>
        <documentation>An ArcString is a curve segment that uses three-point circular arc interpolation ("circularArc3Points"). The number of arcs in the arc string may be explicitly stated in the attribute numArc. The number of control points in the arc string shall be 2 * numArc + 1.
The content model follows the general pattern for the encoding of curve segments.</documentation>
    </annotation>
</element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
pos gml:pos (1) (1)
pointProperty gml:pointProperty (1) (1)
pointRep gml:pointRep (1) (1)
posList gml:posList (1) (1)
coordinates gml:coordinates (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
numDerivativesAtStart gml:numDerivativesAtStart 0 (Optional)
numDerivativesAtEnd gml:numDerivativesAtEnd 0 (Optional)
numDerivativeInterior gml:numDerivativeInterior 0 (Optional)
interpolation gml:interpolation (Optional)
numArc gml:numArc (Optional)
Collapse Derivation Tree:
Collapse References:
gml:AbstractCurveSegment
