Definition Type: ComplexType
Name: arcType
Namespace: http://www.w3.org/1999/xlink
Containing Schema: xlink.xsd
Abstract

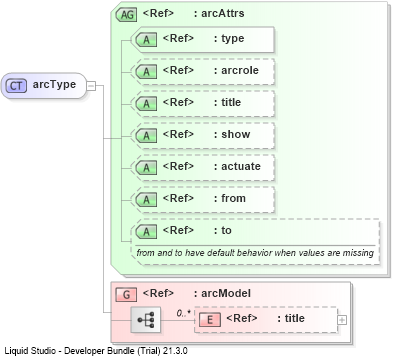

Collapse XSD Schema Diagram:
Drilldown into titleDrilldown into arcModelDrilldown into toDrilldown into fromDrilldown into actuateDrilldown into showDrilldown into titleDrilldown into arcroleDrilldown into typeDrilldown into arcAttrsXSD Diagram of arcType
Collapse XSD Schema Code:
<xs:complexType name="arcType">
    <xs:group ref="xlink:arcModel" />
    <xs:attributeGroup ref="xlink:arcAttrs" />
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
title xlink:title 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
type xlink:type Required
arcrole xlink:arcrole (Optional)
title xlink:title (Optional)
show xlink:show (Optional)
actuate xlink:actuate (Optional)
from xlink:from (Optional)
to xlink:to (Optional)
Collapse Derivation Tree:
Collapse References:
xlink:arc
