Documentation for AIXM 5.1.1
Definition Type: Group
Name: ArrestingGearPropertyGroup
Namespace: http://www.aixm.aero/schema/5.1.1
Containing Schema: AIXM_Features.xsd

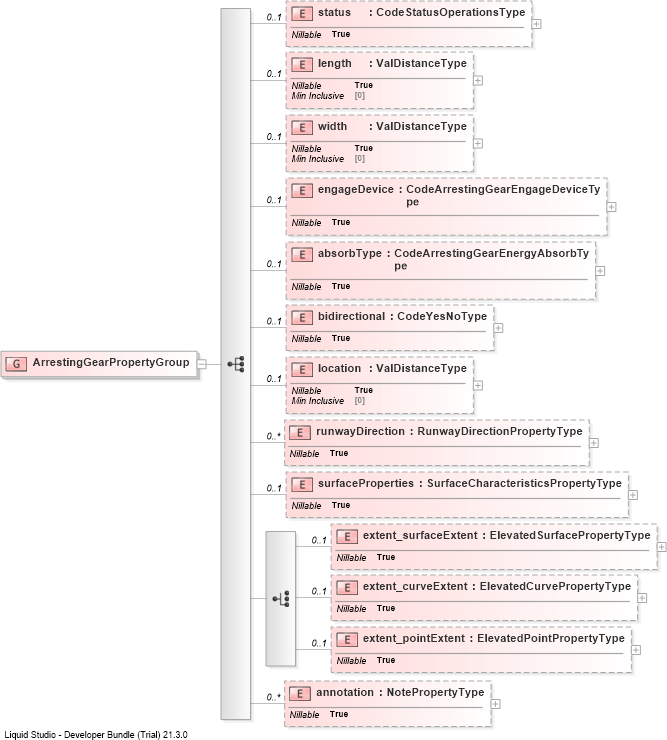

Collapse XSD Schema Diagram:
Drilldown into annotationDrilldown into extent_pointExtentDrilldown into extent_curveExtentDrilldown into extent_surfaceExtentDrilldown into surfacePropertiesDrilldown into runwayDirectionDrilldown into locationDrilldown into bidirectionalDrilldown into absorbTypeDrilldown into engageDeviceDrilldown into widthDrilldown into lengthDrilldown into statusXSD Diagram of ArrestingGearPropertyGroup
Collapse XSD Schema Code:
<group name="ArrestingGearPropertyGroup">
    <sequence>
        <element name="status" type="aixm:CodeStatusOperationsType" nillable="true" minOccurs="0" />
        <element name="length" type="aixm:ValDistanceType" nillable="true" minOccurs="0" />
        <element name="width" type="aixm:ValDistanceType" nillable="true" minOccurs="0" />
        <element name="engageDevice" type="aixm:CodeArrestingGearEngageDeviceType" nillable="true" minOccurs="0" />
        <element name="absorbType" type="aixm:CodeArrestingGearEnergyAbsorbType" nillable="true" minOccurs="0" />
        <element name="bidirectional" type="aixm:CodeYesNoType" nillable="true" minOccurs="0" />
        <element name="location" type="aixm:ValDistanceType" nillable="true" minOccurs="0" />
        <element name="runwayDirection" type="aixm:RunwayDirectionPropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
        <element name="surfaceProperties" type="aixm:SurfaceCharacteristicsPropertyType" nillable="true" minOccurs="0" maxOccurs="1" />
        <choice>
            <element name="extent_surfaceExtent" type="aixm:ElevatedSurfacePropertyType" nillable="true" minOccurs="0" />
            <element name="extent_curveExtent" type="aixm:ElevatedCurvePropertyType" nillable="true" minOccurs="0" />
            <element name="extent_pointExtent" type="aixm:ElevatedPointPropertyType" nillable="true" minOccurs="0" />
        </choice>
        <element name="annotation" type="aixm:NotePropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
    </sequence>
</group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
status aixm:status 0 (1)
length aixm:length 0 (1)
width aixm:width 0 (1)
engageDevice aixm:engageDevice 0 (1)
absorbType aixm:absorbType 0 (1)
bidirectional aixm:bidirectional 0 (1)
location aixm:location 0 (1)
runwayDirection aixm:runwayDirection 0 unbounded
surfaceProperties aixm:surfaceProperties 0 1
extent_surfaceExtent aixm:extent_surfaceExtent 0 (1)
extent_curveExtent aixm:extent_curveExtent 0 (1)
extent_pointExtent aixm:extent_pointExtent 0 (1)
annotation aixm:annotation 0 unbounded
