Documentation for AIXM 5.1.1
Definition Type: Group
Name: AuthorityForAirspacePropertyGroup
Namespace: http://www.aixm.aero/schema/5.1.1
Containing Schema: AIXM_Features.xsd

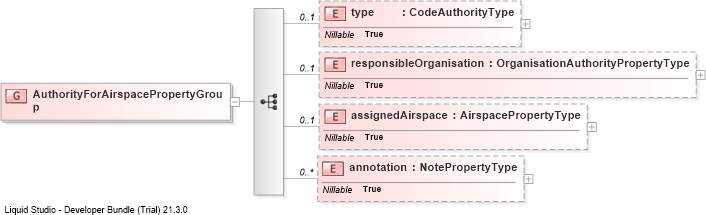

Collapse XSD Schema Diagram:
Drilldown into annotationDrilldown into assignedAirspaceDrilldown into responsibleOrganisationDrilldown into typeXSD Diagram of AuthorityForAirspacePropertyGroup
Collapse XSD Schema Code:
<group name="AuthorityForAirspacePropertyGroup">
    <sequence>
        <element name="type" type="aixm:CodeAuthorityType" nillable="true" minOccurs="0" />
        <element name="responsibleOrganisation" type="aixm:OrganisationAuthorityPropertyType" nillable="true" minOccurs="0" maxOccurs="1" />
        <element name="assignedAirspace" type="aixm:AirspacePropertyType" nillable="true" minOccurs="0" maxOccurs="1" />
        <element name="annotation" type="aixm:NotePropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
    </sequence>
</group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
type aixm:type 0 (1)
responsibleOrganisation aixm:responsibleOrganisation 0 1
assignedAirspace aixm:assignedAirspace 0 1
annotation aixm:annotation 0 unbounded
