Documentation for AIXM 5.1.1
Definition Type: Group
Name: AuthorityForSpecialNavigationStationPropertyGroup
Namespace: http://www.aixm.aero/schema/5.1.1
Containing Schema: AIXM_Features.xsd

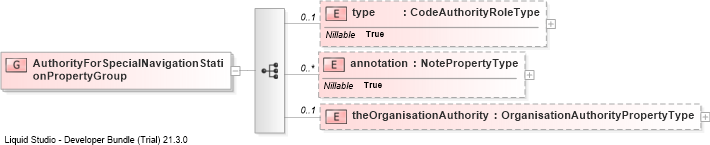

Collapse XSD Schema Diagram:
Drilldown into theOrganisationAuthorityDrilldown into annotationDrilldown into typeXSD Diagram of AuthorityForSpecialNavigationStationPropertyGroup
Collapse XSD Schema Code:
<group name="AuthorityForSpecialNavigationStationPropertyGroup">
    <sequence>
        <element name="type" type="aixm:CodeAuthorityRoleType" nillable="true" minOccurs="0" />
        <element name="annotation" type="aixm:NotePropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
        <element name="theOrganisationAuthority" type="aixm:OrganisationAuthorityPropertyType" minOccurs="0" />
    </sequence>
</group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
type aixm:type 0 (1)
annotation aixm:annotation 0 unbounded
theOrganisationAuthority aixm:theOrganisationAuthority 0 (1)
