Definition Type: Group
Name: AzimuthPropertyGroup
Namespace: http://www.aixm.aero/schema/5.1.1
Containing Schema: AIXM_Features.xsd

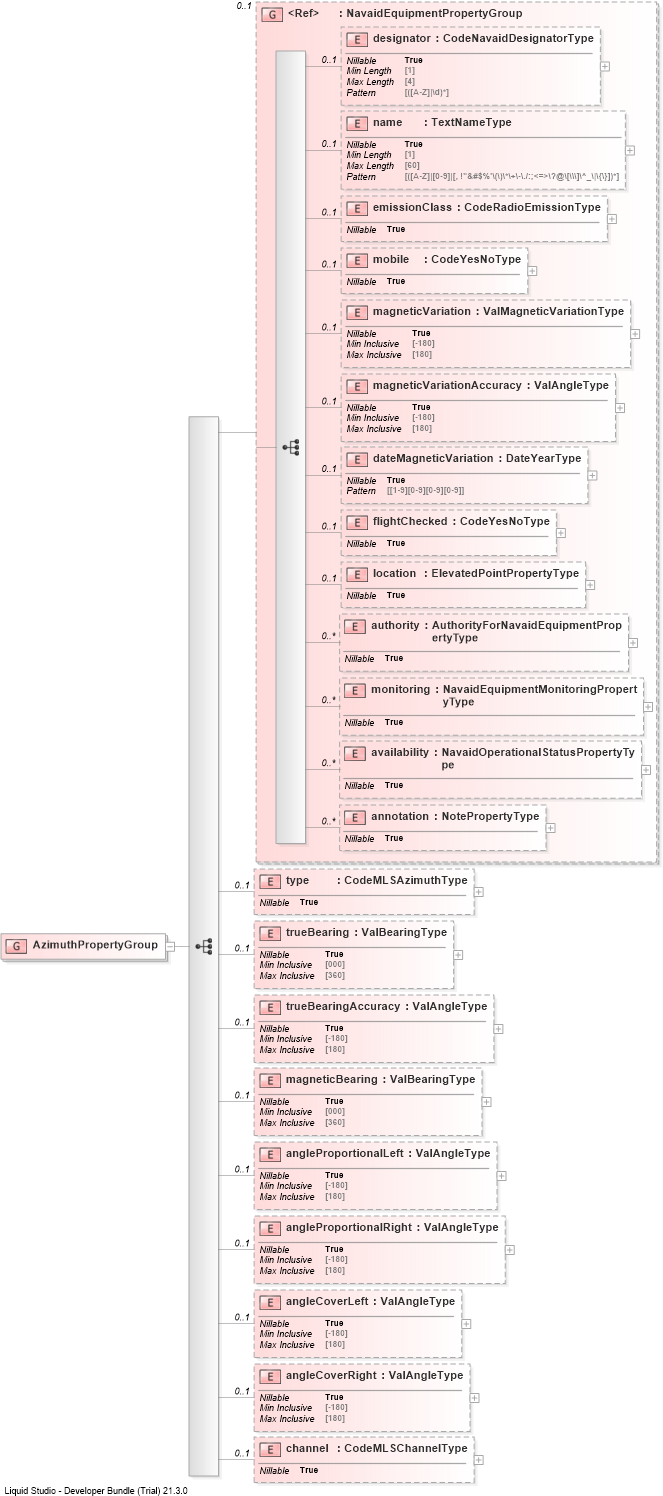

Collapse XSD Schema Diagram:
Drilldown into channelDrilldown into angleCoverRightDrilldown into angleCoverLeftDrilldown into angleProportionalRightDrilldown into angleProportionalLeftDrilldown into magneticBearingDrilldown into trueBearingAccuracyDrilldown into trueBearingDrilldown into typeDrilldown into annotationDrilldown into availabilityDrilldown into monitoringDrilldown into authorityDrilldown into locationDrilldown into flightCheckedDrilldown into dateMagneticVariationDrilldown into magneticVariationAccuracyDrilldown into magneticVariationDrilldown into mobileDrilldown into emissionClassDrilldown into nameDrilldown into designatorDrilldown into NavaidEquipmentPropertyGroupXSD Diagram of AzimuthPropertyGroup
Collapse XSD Schema Code:
<group name="AzimuthPropertyGroup">
    <sequence>
        <group ref="aixm:NavaidEquipmentPropertyGroup" minOccurs="0" />
        <element name="type" type="aixm:CodeMLSAzimuthType" nillable="true" minOccurs="0" />
        <element name="trueBearing" type="aixm:ValBearingType" nillable="true" minOccurs="0" />
        <element name="trueBearingAccuracy" type="aixm:ValAngleType" nillable="true" minOccurs="0" />
        <element name="magneticBearing" type="aixm:ValBearingType" nillable="true" minOccurs="0" />
        <element name="angleProportionalLeft" type="aixm:ValAngleType" nillable="true" minOccurs="0" />
        <element name="angleProportionalRight" type="aixm:ValAngleType" nillable="true" minOccurs="0" />
        <element name="angleCoverLeft" type="aixm:ValAngleType" nillable="true" minOccurs="0" />
        <element name="angleCoverRight" type="aixm:ValAngleType" nillable="true" minOccurs="0" />
        <element name="channel" type="aixm:CodeMLSChannelType" nillable="true" minOccurs="0" />
    </sequence>
</group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
designator aixm:designator 0 (1)
name aixm:name 0 (1)
emissionClass aixm:emissionClass 0 (1)
mobile aixm:mobile 0 (1)
magneticVariation aixm:magneticVariation 0 (1)
magneticVariationAccuracy aixm:magneticVariationAccuracy 0 (1)
dateMagneticVariation aixm:dateMagneticVariation 0 (1)
flightChecked aixm:flightChecked 0 (1)
location aixm:location 0 1
authority aixm:authority 0 unbounded
monitoring aixm:monitoring 0 unbounded
availability aixm:availability 0 unbounded
annotation aixm:annotation 0 unbounded
type aixm:type 0 (1)
trueBearing aixm:trueBearing 0 (1)
trueBearingAccuracy aixm:trueBearingAccuracy 0 (1)
magneticBearing aixm:magneticBearing 0 (1)
angleProportionalLeft aixm:angleProportionalLeft 0 (1)
angleProportionalRight aixm:angleProportionalRight 0 (1)
angleCoverLeft aixm:angleCoverLeft 0 (1)
angleCoverRight aixm:angleCoverRight 0 (1)
channel aixm:channel 0 (1)
<xs:group> aixm:NavaidEquipmentPropertyGroup 0 (1)
