Documentation for AIXM 5.1.1
Definition Type: Element
Name: baseSurface
Namespace: http://www.opengis.net/gml/3.2
Type: gml:SurfacePropertyType
Containing Schema: geometryPrimitives.xsd
Abstract
Documentation:
The property baseSurface references or contains the base surface. The property baseSurface either references the base surface via the XLink-attributes or contains the surface element. A surface element is any element which is substitutable for gml:AbstractSurface. The base surface has positive orientation.

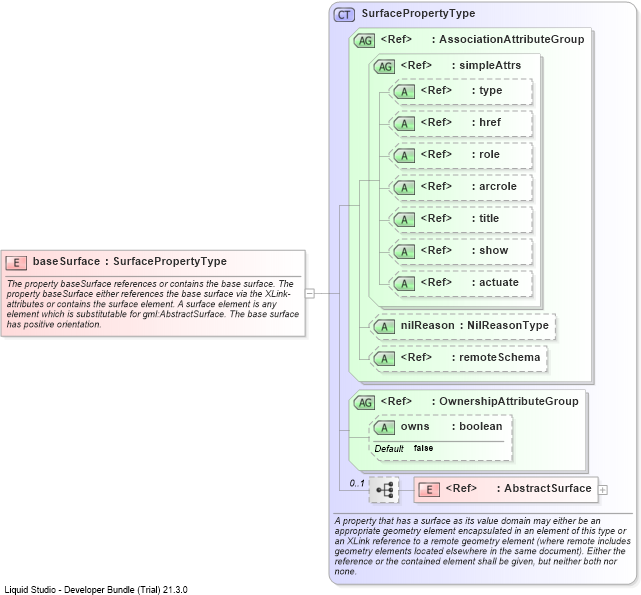

Collapse XSD Schema Diagram:
Drilldown into AbstractSurfaceDrilldown into ownsDrilldown into OwnershipAttributeGroupDrilldown into remoteSchemaDrilldown into nilReasonDrilldown into actuateDrilldown into showDrilldown into titleDrilldown into arcroleDrilldown into roleDrilldown into hrefDrilldown into typeDrilldown into simpleAttrsDrilldown into AssociationAttributeGroupDrilldown into SurfacePropertyTypeXSD Diagram of baseSurface
Collapse XSD Schema Code:
<element name="baseSurface" type="gml:SurfacePropertyType">
    <annotation>
        <documentation>The property baseSurface references or contains the base surface. The property baseSurface either references the base surface via the XLink-attributes or contains the surface element. A surface element is any element which is substitutable for gml:AbstractSurface. The base surface has positive orientation.</documentation>
    </annotation>
</element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
AbstractSurface gml:AbstractSurface (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
type xlink:type (Optional)
href xlink:href (Optional)
role xlink:role (Optional)
arcrole xlink:arcrole (Optional)
title xlink:title (Optional)
show xlink:show (Optional)
actuate xlink:actuate (Optional)
nilReason gml:nilReason (Optional)
remoteSchema gml:remoteSchema (Optional)
owns gml:owns false (Optional)
Collapse Derivation Tree:
