Definition Type: Element
Name: centreline
Namespace: http://www.aixm.aero/schema/5.1.1
Type: aixm:CurvePropertyType
Containing Schema: AIXM_Features.xsd
MinOccurs 0
MaxOccurs 1
Abstract

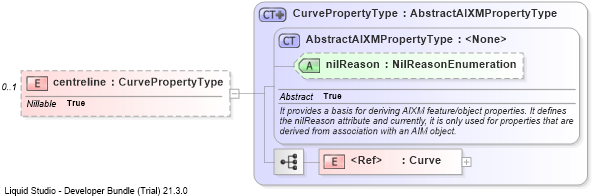

Collapse XSD Schema Diagram:
Drilldown into CurveDrilldown into nilReasonDrilldown into AbstractAIXMPropertyTypeDrilldown into CurvePropertyTypeXSD Diagram of centreline
Collapse XSD Schema Code:
<element name="centreline" type="aixm:CurvePropertyType" nillable="true" minOccurs="0" maxOccurs="1" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Curve aixm:Curve (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
nilReason aixm:nilReason (Optional)
Collapse Derivation Tree:
