Documentation for AIXM 5.1.1
Definition Type: ComplexType
Name: CI_Address_Type
Namespace: http://www.isotc211.org/2005/gmd
Type: gco:AbstractObject_Type
Containing Schema: citation.xsd
Abstract
Documentation:
Location of the responsible individual or organisation

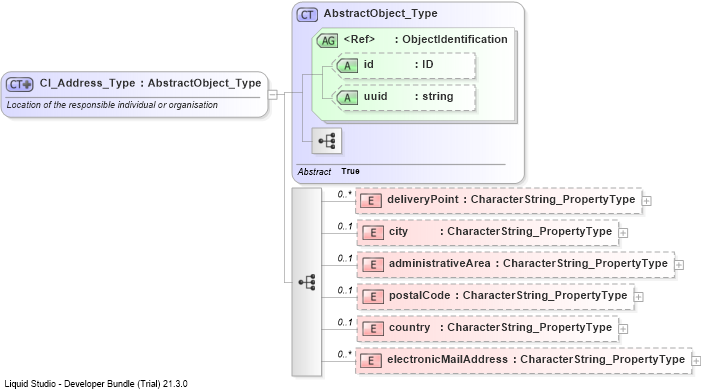

Collapse XSD Schema Diagram:
Drilldown into electronicMailAddressDrilldown into countryDrilldown into postalCodeDrilldown into administrativeAreaDrilldown into cityDrilldown into deliveryPointDrilldown into uuidDrilldown into idDrilldown into ObjectIdentificationDrilldown into AbstractObject_TypeXSD Diagram of CI_Address_Type
Collapse XSD Schema Code:
<xs:complexType name="CI_Address_Type">
    <xs:annotation>
        <xs:documentation>Location of the responsible individual or organisation</xs:documentation>
    </xs:annotation>
    <xs:complexContent>
        <xs:extension base="gco:AbstractObject_Type">
            <xs:sequence>
                <xs:element name="deliveryPoint" type="gco:CharacterString_PropertyType" minOccurs="0" maxOccurs="unbounded" />
                <xs:element name="city" type="gco:CharacterString_PropertyType" minOccurs="0" />
                <xs:element name="administrativeArea" type="gco:CharacterString_PropertyType" minOccurs="0" />
                <xs:element name="postalCode" type="gco:CharacterString_PropertyType" minOccurs="0" />
                <xs:element name="country" type="gco:CharacterString_PropertyType" minOccurs="0" />
                <xs:element name="electronicMailAddress" type="gco:CharacterString_PropertyType" minOccurs="0" maxOccurs="unbounded" />
            </xs:sequence>
        </xs:extension>
    </xs:complexContent>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
deliveryPoint gmd:deliveryPoint 0 unbounded
city gmd:city 0 (1)
administrativeArea gmd:administrativeArea 0 (1)
postalCode gmd:postalCode 0 (1)
country gmd:country 0 (1)
electronicMailAddress gmd:electronicMailAddress 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
id gco:id (Optional)
uuid gco:uuid (Optional)
Collapse Derivation Tree:
Collapse References:
gmd:CI_Address
