Documentation for AIXM 5.1.1
Definition Type: Element
Name: Circle
Namespace: http://www.opengis.net/gml/3.2
Type: gml:CircleType
Containing Schema: geometryPrimitives.xsd
Abstract
Documentation:
A Circle is an arc whose ends coincide to form a simple closed loop. The three control points shall be distinct non-co-linear points for the circle to be unambiguously defined. The arc is simply extended past the third control point until the first control point is encountered.

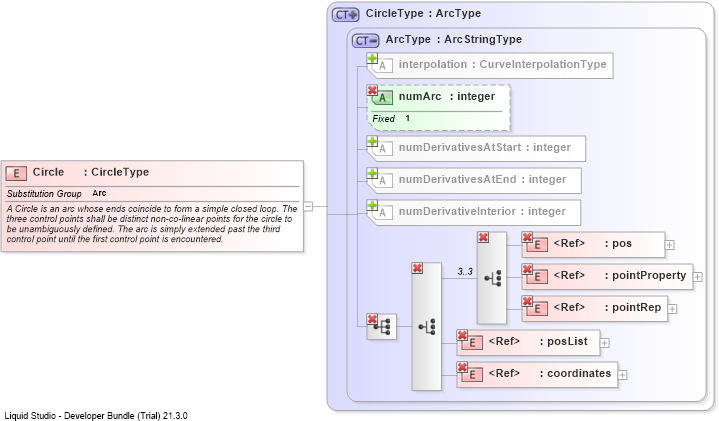

Collapse XSD Schema Diagram:
Drilldown into coordinatesDrilldown into posListDrilldown into pointRepDrilldown into pointPropertyDrilldown into posDrilldown into numDerivativeInteriorDrilldown into numDerivativesAtEndDrilldown into numDerivativesAtStartDrilldown into numArcDrilldown into interpolationDrilldown into ArcTypeDrilldown into CircleTypeXSD Diagram of Circle
Collapse XSD Schema Code:
<element name="Circle" type="gml:CircleType" substitutionGroup="gml:Arc">
    <annotation>
        <documentation>A Circle is an arc whose ends coincide to form a simple closed loop. The three control points shall be distinct non-co-linear points for the circle to be unambiguously defined. The arc is simply extended past the third control point until the first control point is encountered.</documentation>
    </annotation>
</element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
pos gml:pos (1) (1)
pointProperty gml:pointProperty (1) (1)
pointRep gml:pointRep (1) (1)
posList gml:posList (1) (1)
coordinates gml:coordinates (1) (1)
pos gml:pos (1) (1)
pointProperty gml:pointProperty (1) (1)
pointRep gml:pointRep (1) (1)
posList gml:posList (1) (1)
coordinates gml:coordinates (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
numDerivativesAtStart gml:numDerivativesAtStart 0 (Optional)
numDerivativesAtEnd gml:numDerivativesAtEnd 0 (Optional)
numDerivativeInterior gml:numDerivativeInterior 0 (Optional)
interpolation gml:interpolation (Optional)
numArc gml:numArc (Optional)
Collapse Derivation Tree:
Collapse References:
gml:Arc
