Documentation for AIXM 5.1.1
Definition Type: Group
Name: CircleSectorPropertyGroup
Namespace: http://www.aixm.aero/schema/5.1.1
Containing Schema: AIXM_Features.xsd
Collapse XSD Schema Diagram:

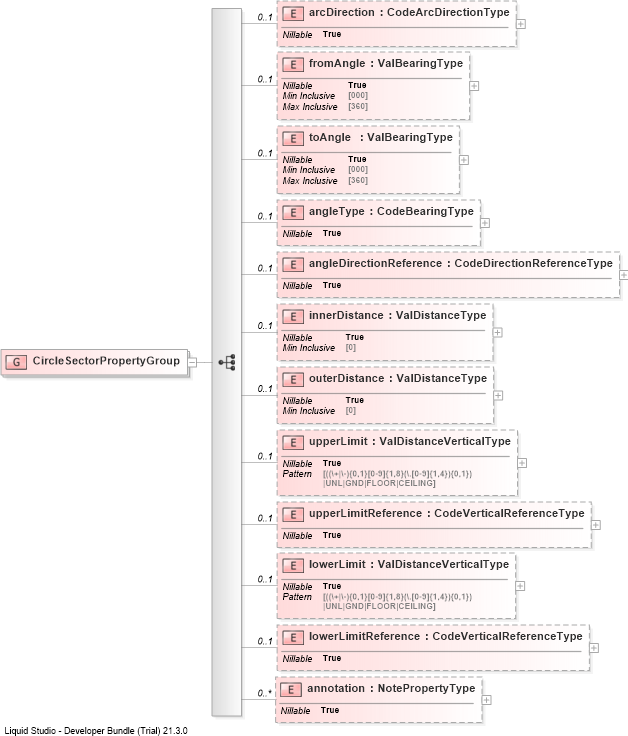

Drilldown into annotationDrilldown into lowerLimitReferenceDrilldown into lowerLimitDrilldown into upperLimitReferenceDrilldown into upperLimitDrilldown into outerDistanceDrilldown into innerDistanceDrilldown into angleDirectionReferenceDrilldown into angleTypeDrilldown into toAngleDrilldown into fromAngleDrilldown into arcDirectionXSD Diagram of CircleSectorPropertyGroup
Collapse XSD Schema Code:
<group name="CircleSectorPropertyGroup">
    <sequence>
        <element name="arcDirection" type="aixm:CodeArcDirectionType" nillable="true" minOccurs="0" />
        <element name="fromAngle" type="aixm:ValBearingType" nillable="true" minOccurs="0" />
        <element name="toAngle" type="aixm:ValBearingType" nillable="true" minOccurs="0" />
        <element name="angleType" type="aixm:CodeBearingType" nillable="true" minOccurs="0" />
        <element name="angleDirectionReference" type="aixm:CodeDirectionReferenceType" nillable="true" minOccurs="0" />
        <element name="innerDistance" type="aixm:ValDistanceType" nillable="true" minOccurs="0" />
        <element name="outerDistance" type="aixm:ValDistanceType" nillable="true" minOccurs="0" />
        <element name="upperLimit" type="aixm:ValDistanceVerticalType" nillable="true" minOccurs="0" />
        <element name="upperLimitReference" type="aixm:CodeVerticalReferenceType" nillable="true" minOccurs="0" />
        <element name="lowerLimit" type="aixm:ValDistanceVerticalType" nillable="true" minOccurs="0" />
        <element name="lowerLimitReference" type="aixm:CodeVerticalReferenceType" nillable="true" minOccurs="0" />
        <element name="annotation" type="aixm:NotePropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
    </sequence>
</group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
arcDirection aixm:arcDirection 0 (1)
fromAngle aixm:fromAngle 0 (1)
toAngle aixm:toAngle 0 (1)
angleType aixm:angleType 0 (1)
angleDirectionReference aixm:angleDirectionReference 0 (1)
innerDistance aixm:innerDistance 0 (1)
outerDistance aixm:outerDistance 0 (1)
upperLimit aixm:upperLimit 0 (1)
upperLimitReference aixm:upperLimitReference 0 (1)
lowerLimit aixm:lowerLimit 0 (1)
lowerLimitReference aixm:lowerLimitReference 0 (1)
annotation aixm:annotation 0 unbounded
