Documentation for AIXM 5.1.1
Definition Type: Group
Name: CirclingAreaPropertyGroup
Namespace: http://www.aixm.aero/schema/5.1.1
Containing Schema: AIXM_Features.xsd

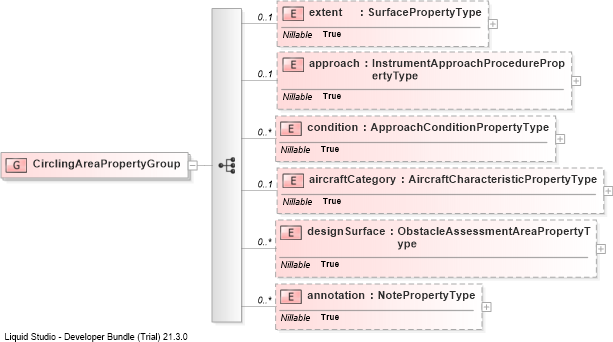

Collapse XSD Schema Diagram:
Drilldown into annotationDrilldown into designSurfaceDrilldown into aircraftCategoryDrilldown into conditionDrilldown into approachDrilldown into extentXSD Diagram of CirclingAreaPropertyGroup
Collapse XSD Schema Code:
<group name="CirclingAreaPropertyGroup">
    <sequence>
        <element name="extent" type="aixm:SurfacePropertyType" nillable="true" minOccurs="0" maxOccurs="1" />
        <element name="approach" type="aixm:InstrumentApproachProcedurePropertyType" nillable="true" minOccurs="0" maxOccurs="1" />
        <element name="condition" type="aixm:ApproachConditionPropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
        <element name="aircraftCategory" type="aixm:AircraftCharacteristicPropertyType" nillable="true" minOccurs="0" maxOccurs="1" />
        <element name="designSurface" type="aixm:ObstacleAssessmentAreaPropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
        <element name="annotation" type="aixm:NotePropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
    </sequence>
</group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
extent aixm:extent 0 1
approach aixm:approach 0 1
condition aixm:condition 0 unbounded
aircraftCategory aixm:aircraftCategory 0 1
designSurface aixm:designSurface 0 unbounded
annotation aixm:annotation 0 unbounded
