Documentation for AIXM 5.1.1
Definition Type: Element
Name: CompositeSolid
Namespace: http://www.opengis.net/gml/3.2
Type: gml:CompositeSolidType
Containing Schema: geometryComplexes.xsd
Abstract
Documentation:
gml:CompositeSolid implements ISO 19107 GM_CompositeSolid (see ISO 19107:2003, 6.6.7) as specified in D.2.3.6.
A gml:CompositeSolid is represented by a set of orientable surfaces. It is a geometry type with all the geometric properties of a (primitive) solid. Essentially, a composite solid is a collection of solids that join in pairs on common boundary surfaces and which, when considered as a whole, form a single solid.
solidMember references or contains one solid in the composite solid. The solids are contiguous.

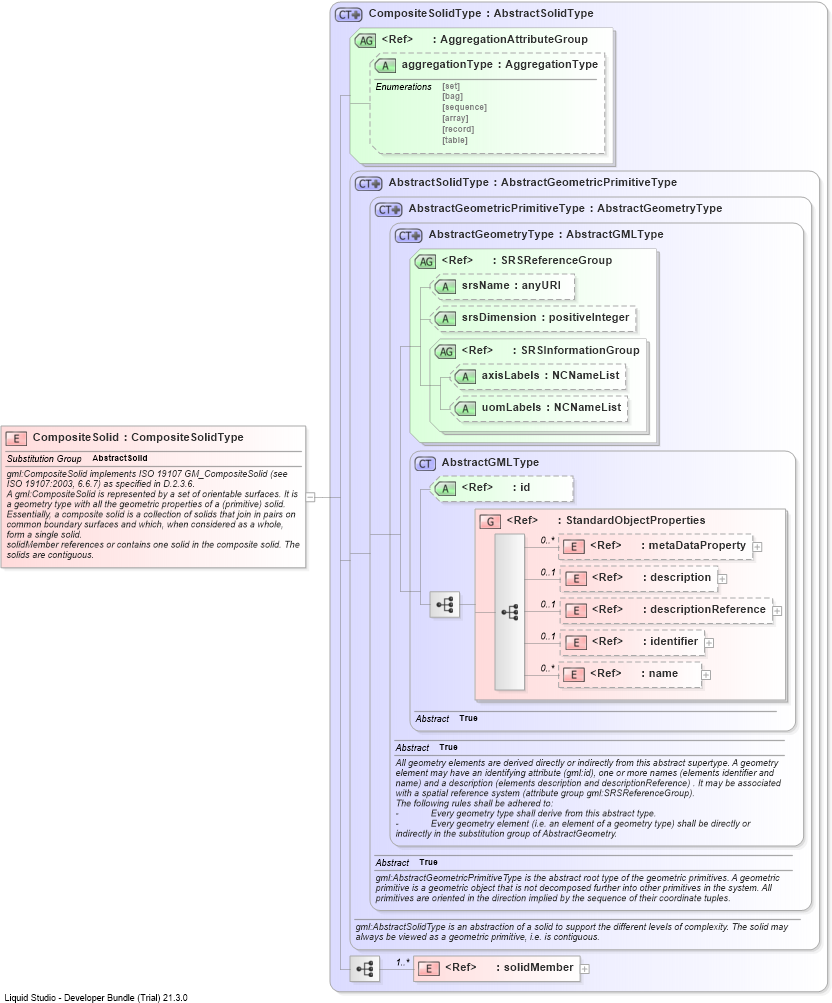

Collapse XSD Schema Diagram:
Drilldown into solidMemberDrilldown into nameDrilldown into identifierDrilldown into descriptionReferenceDrilldown into descriptionDrilldown into metaDataPropertyDrilldown into StandardObjectPropertiesDrilldown into idDrilldown into AbstractGMLTypeDrilldown into uomLabelsDrilldown into axisLabelsDrilldown into SRSInformationGroupDrilldown into srsDimensionDrilldown into srsNameDrilldown into SRSReferenceGroupDrilldown into AbstractGeometryTypeDrilldown into AbstractGeometricPrimitiveTypeDrilldown into AbstractSolidTypeDrilldown into aggregationTypeDrilldown into AggregationAttributeGroupDrilldown into CompositeSolidTypeXSD Diagram of CompositeSolid
Collapse XSD Schema Code:
<element name="CompositeSolid" type="gml:CompositeSolidType" substitutionGroup="gml:AbstractSolid">
    <annotation>
        <documentation>gml:CompositeSolid implements ISO 19107 GM_CompositeSolid (see ISO 19107:2003, 6.6.7) as specified in D.2.3.6.
A gml:CompositeSolid is represented by a set of orientable surfaces. It is a geometry type with all the geometric properties of a (primitive) solid. Essentially, a composite solid is a collection of solids that join in pairs on common boundary surfaces and which, when considered as a whole, form a single solid.
solidMember references or contains one solid in the composite solid. The solids are contiguous.</documentation>
    </annotation>
</element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
descriptionReference gml:descriptionReference 0 (1)
identifier gml:identifier 0 (1)
name gml:name 0 unbounded
solidMember gml:solidMember (1) unbounded
<xs:group> gml:StandardObjectProperties (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id gml:id (Optional)
srsName gml:srsName (Optional)
srsDimension gml:srsDimension (Optional)
axisLabels gml:axisLabels (Optional)
uomLabels gml:uomLabels (Optional)
aggregationType gml:aggregationType (Optional)
Collapse Derivation Tree:
Collapse References:
gml:AbstractSolid
