Documentation for AIXM 5.1.1
Definition Type: ComplexType
Name: ConcatenatedOperationPropertyType
Namespace: http://www.opengis.net/gml/3.2
Containing Schema: coordinateOperations.xsd
Abstract
Documentation:
gml:ConcatenatedOperationPropertyType is a property type for association roles to a concatenated operation, either referencing or containing the definition of that concatenated operation.

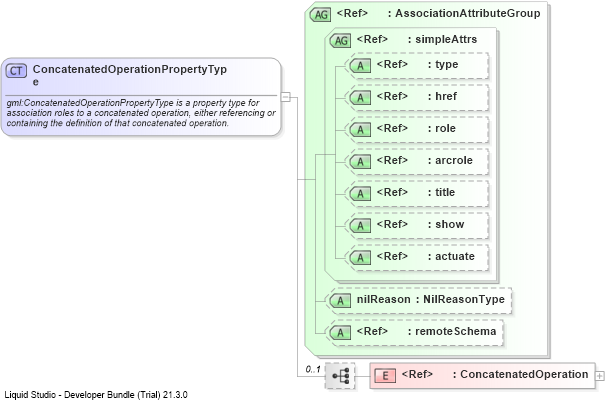

Collapse XSD Schema Diagram:
Drilldown into ConcatenatedOperationDrilldown into remoteSchemaDrilldown into nilReasonDrilldown into actuateDrilldown into showDrilldown into titleDrilldown into arcroleDrilldown into roleDrilldown into hrefDrilldown into typeDrilldown into simpleAttrsDrilldown into AssociationAttributeGroupXSD Diagram of ConcatenatedOperationPropertyType
Collapse XSD Schema Code:
<complexType name="ConcatenatedOperationPropertyType">
    <annotation>
        <documentation>gml:ConcatenatedOperationPropertyType is a property type for association roles to a concatenated operation, either referencing or containing the definition of that concatenated operation.</documentation>
    </annotation>
    <sequence minOccurs="0">
        <element ref="gml:ConcatenatedOperation" />
    </sequence>
    <attributeGroup ref="gml:AssociationAttributeGroup" />
</complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ConcatenatedOperation gml:ConcatenatedOperation (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
type xlink:type (Optional)
href xlink:href (Optional)
role xlink:role (Optional)
arcrole xlink:arcrole (Optional)
title xlink:title (Optional)
show xlink:show (Optional)
actuate xlink:actuate (Optional)
nilReason gml:nilReason (Optional)
remoteSchema gml:remoteSchema (Optional)
Collapse Derivation Tree:
Collapse References:
gml:concatenatedOperationRef
