Documentation for AIXM 5.1.1
Definition Type: Group
Name: ConditionCombinationPropertyGroup
Namespace: http://www.aixm.aero/schema/5.1.1
Containing Schema: AIXM_Features.xsd

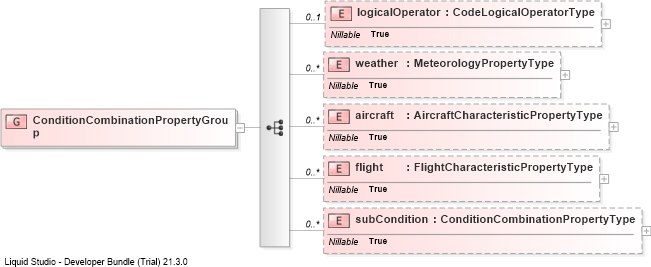

Collapse XSD Schema Diagram:
Drilldown into subConditionDrilldown into flightDrilldown into aircraftDrilldown into weatherDrilldown into logicalOperatorXSD Diagram of ConditionCombinationPropertyGroup
Collapse XSD Schema Code:
<group name="ConditionCombinationPropertyGroup">
    <sequence>
        <element name="logicalOperator" type="aixm:CodeLogicalOperatorType" nillable="true" minOccurs="0" />
        <element name="weather" type="aixm:MeteorologyPropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
        <element name="aircraft" type="aixm:AircraftCharacteristicPropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
        <element name="flight" type="aixm:FlightCharacteristicPropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
        <element name="subCondition" type="aixm:ConditionCombinationPropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
    </sequence>
</group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
logicalOperator aixm:logicalOperator 0 (1)
weather aixm:weather 0 unbounded
aircraft aixm:aircraft 0 unbounded
flight aixm:flight 0 unbounded
subCondition aixm:subCondition 0 unbounded
