Documentation for AIXM 5.1.1
Definition Type: ComplexType
Name: ConversionPropertyType
Namespace: http://www.opengis.net/gml/3.2
Containing Schema: coordinateOperations.xsd
Abstract
Documentation:
gml:ConversionPropertyType is a property type for association roles to a concrete general-purpose conversion, either referencing or containing the definition of that conversion.

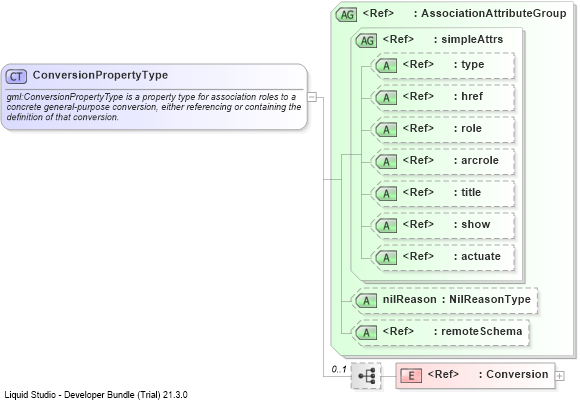

Collapse XSD Schema Diagram:
Drilldown into ConversionDrilldown into remoteSchemaDrilldown into nilReasonDrilldown into actuateDrilldown into showDrilldown into titleDrilldown into arcroleDrilldown into roleDrilldown into hrefDrilldown into typeDrilldown into simpleAttrsDrilldown into AssociationAttributeGroupXSD Diagram of ConversionPropertyType
Collapse XSD Schema Code:
<complexType name="ConversionPropertyType">
    <annotation>
        <documentation>gml:ConversionPropertyType is a property type for association roles to a concrete general-purpose conversion, either referencing or containing the definition of that conversion.</documentation>
    </annotation>
    <sequence minOccurs="0">
        <element ref="gml:Conversion" />
    </sequence>
    <attributeGroup ref="gml:AssociationAttributeGroup" />
</complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Conversion gml:Conversion (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
type xlink:type (Optional)
href xlink:href (Optional)
role xlink:role (Optional)
arcrole xlink:arcrole (Optional)
title xlink:title (Optional)
show xlink:show (Optional)
actuate xlink:actuate (Optional)
nilReason gml:nilReason (Optional)
remoteSchema gml:remoteSchema (Optional)
Collapse Derivation Tree:
Collapse References:
gml:conversionRef
