Definition Type: ComplexType
Name: CoordinateSystemAxisPropertyType
Namespace: http://www.opengis.net/gml/3.2
Containing Schema: coordinateSystems.xsd
Abstract
Documentation:
gml:CoordinateSystemAxisPropertyType is a property type for association roles to a coordinate system axis, either referencing or containing the definition of that axis.

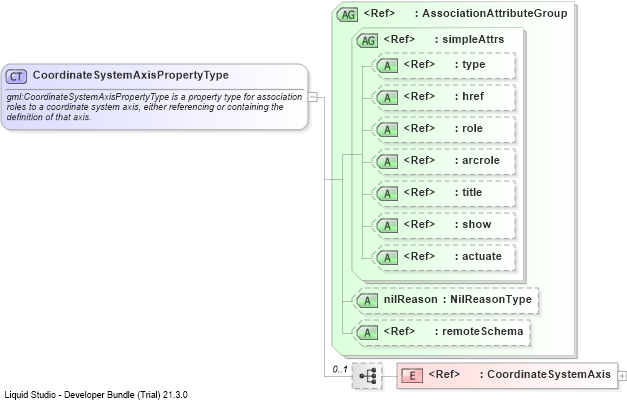

Collapse XSD Schema Diagram:
Drilldown into CoordinateSystemAxisDrilldown into remoteSchemaDrilldown into nilReasonDrilldown into actuateDrilldown into showDrilldown into titleDrilldown into arcroleDrilldown into roleDrilldown into hrefDrilldown into typeDrilldown into simpleAttrsDrilldown into AssociationAttributeGroupXSD Diagram of CoordinateSystemAxisPropertyType
Collapse XSD Schema Code:
<complexType name="CoordinateSystemAxisPropertyType">
    <annotation>
        <documentation>gml:CoordinateSystemAxisPropertyType is a property type for association roles to a coordinate system axis, either referencing or containing the definition of that axis.</documentation>
    </annotation>
    <sequence minOccurs="0">
        <element ref="gml:CoordinateSystemAxis" />
    </sequence>
    <attributeGroup ref="gml:AssociationAttributeGroup" />
</complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
CoordinateSystemAxis gml:CoordinateSystemAxis (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
type xlink:type (Optional)
href xlink:href (Optional)
role xlink:role (Optional)
arcrole xlink:arcrole (Optional)
title xlink:title (Optional)
show xlink:show (Optional)
actuate xlink:actuate (Optional)
nilReason gml:nilReason (Optional)
remoteSchema gml:remoteSchema (Optional)
Collapse Derivation Tree:
Collapse References:
gml:axis, gml:coordinateSystemAxisRef, gml:usesAxis
