Definition Type: ComplexType
Name: CoordinateSystemAxisType
Namespace: http://www.opengis.net/gml/3.2
Type: gml:IdentifiedObjectType
Containing Schema: coordinateSystems.xsd
Abstract

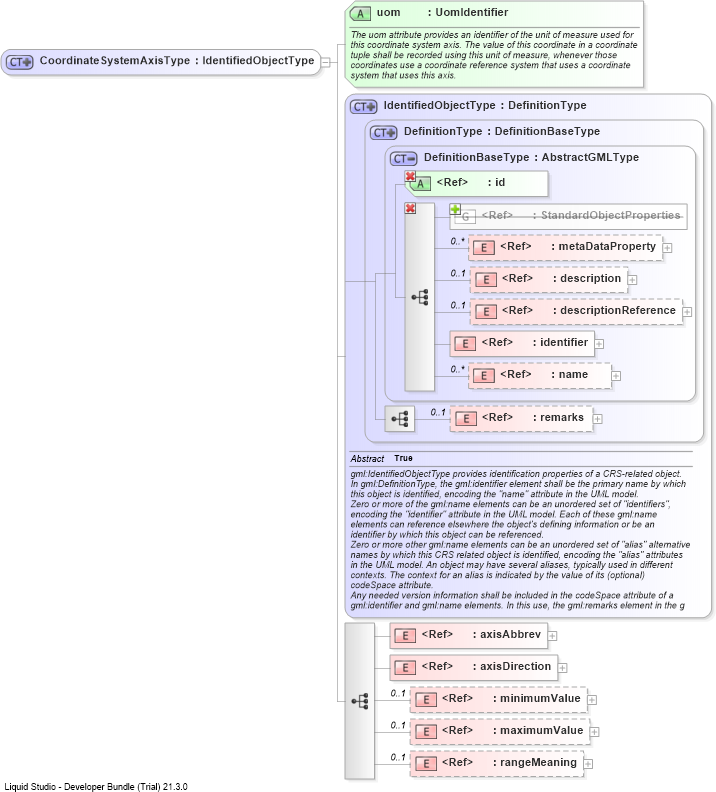

Collapse XSD Schema Diagram:
Drilldown into rangeMeaningDrilldown into maximumValueDrilldown into minimumValueDrilldown into axisDirectionDrilldown into axisAbbrevDrilldown into remarksDrilldown into nameDrilldown into identifierDrilldown into descriptionReferenceDrilldown into descriptionDrilldown into metaDataPropertyDrilldown into StandardObjectPropertiesDrilldown into idDrilldown into DefinitionBaseTypeDrilldown into DefinitionTypeDrilldown into IdentifiedObjectTypeDrilldown into uomXSD Diagram of CoordinateSystemAxisType
Collapse XSD Schema Code:
<complexType name="CoordinateSystemAxisType">
    <complexContent>
        <extension base="gml:IdentifiedObjectType">
            <sequence>
                <element ref="gml:axisAbbrev" />
                <element ref="gml:axisDirection" />
                <element ref="gml:minimumValue" minOccurs="0" />
                <element ref="gml:maximumValue" minOccurs="0" />
                <element ref="gml:rangeMeaning" minOccurs="0" />
            </sequence>
            <attribute name="uom" type="gml:UomIdentifier" use="required">
                <annotation>
                    <documentation>The uom attribute provides an identifier of the unit of measure used for this coordinate system axis. The value of this coordinate in a coordinate tuple shall be recorded using this unit of measure, whenever those coordinates use a coordinate reference system that uses a coordinate system that uses this axis.</documentation>
                </annotation>
            </attribute>
        </extension>
    </complexContent>
</complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
descriptionReference gml:descriptionReference 0 (1)
identifier gml:identifier 0 (1)
name gml:name 0 unbounded
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
descriptionReference gml:descriptionReference 0 (1)
identifier gml:identifier (1) (1)
name gml:name 0 unbounded
remarks gml:remarks 0 (1)
axisAbbrev gml:axisAbbrev (1) (1)
axisDirection gml:axisDirection (1) (1)
minimumValue gml:minimumValue 0 (1)
maximumValue gml:maximumValue 0 (1)
rangeMeaning gml:rangeMeaning 0 (1)
<xs:group> gml:StandardObjectProperties (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id gml:id Required
uom gml:uom Required
Collapse Derivation Tree:
Collapse References:
gml:CoordinateSystemAxis
