Documentation for AIXM 5.1.1
Definition Type: ComplexType
Name: CRSPropertyType
Namespace: http://www.opengis.net/gml/3.2
Containing Schema: referenceSystems.xsd
Abstract
Documentation:
gml:CRSPropertyType is a property type for association roles to a CRS abstract coordinate reference system, either referencing or containing the definition of that CRS.

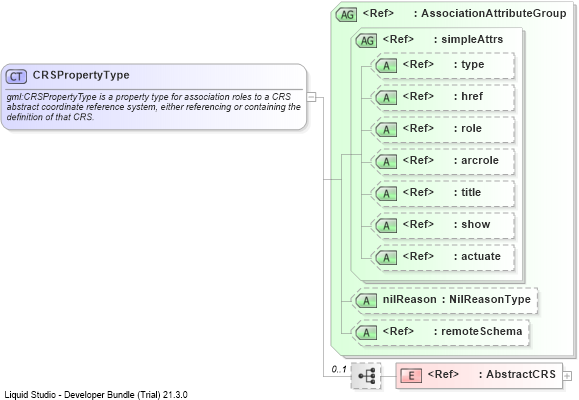

Collapse XSD Schema Diagram:
Drilldown into AbstractCRSDrilldown into remoteSchemaDrilldown into nilReasonDrilldown into actuateDrilldown into showDrilldown into titleDrilldown into arcroleDrilldown into roleDrilldown into hrefDrilldown into typeDrilldown into simpleAttrsDrilldown into AssociationAttributeGroupXSD Diagram of CRSPropertyType
Collapse XSD Schema Code:
<complexType name="CRSPropertyType">
    <annotation>
        <documentation>gml:CRSPropertyType is a property type for association roles to a CRS abstract coordinate reference system, either referencing or containing the definition of that CRS.</documentation>
    </annotation>
    <sequence minOccurs="0">
        <element ref="gml:AbstractCRS" />
    </sequence>
    <attributeGroup ref="gml:AssociationAttributeGroup" />
</complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
AbstractCRS gml:AbstractCRS (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
type xlink:type (Optional)
href xlink:href (Optional)
role xlink:role (Optional)
arcrole xlink:arcrole (Optional)
title xlink:title (Optional)
show xlink:show (Optional)
actuate xlink:actuate (Optional)
nilReason gml:nilReason (Optional)
remoteSchema gml:remoteSchema (Optional)
Collapse Derivation Tree:
Collapse References:
gml:crsRef, gml:referenceSystemRefgml:sourceCRS, gml:targetCRS,
