Documentation for AIXM 5.1.1
Definition Type: Group
Name: DeicingAreaMarkingPropertyGroup
Namespace: http://www.aixm.aero/schema/5.1.1
Containing Schema: AIXM_Features.xsd

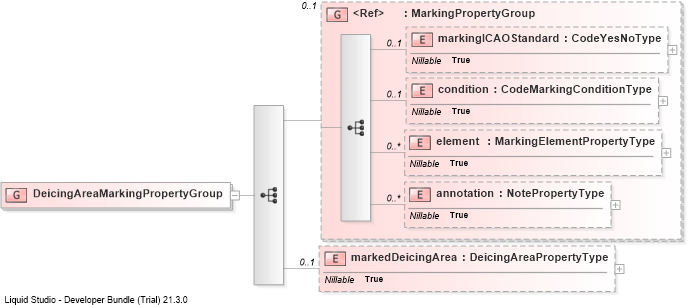

Collapse XSD Schema Diagram:
Drilldown into markedDeicingAreaDrilldown into annotationDrilldown into elementDrilldown into conditionDrilldown into markingICAOStandardDrilldown into MarkingPropertyGroupXSD Diagram of DeicingAreaMarkingPropertyGroup
Collapse XSD Schema Code:
<group name="DeicingAreaMarkingPropertyGroup">
    <sequence>
        <group ref="aixm:MarkingPropertyGroup" minOccurs="0" />
        <element name="markedDeicingArea" type="aixm:DeicingAreaPropertyType" nillable="true" minOccurs="0" maxOccurs="1" />
    </sequence>
</group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
markingICAOStandard aixm:markingICAOStandard 0 (1)
condition aixm:condition 0 (1)
element aixm:element 0 unbounded
annotation aixm:annotation 0 unbounded
markedDeicingArea aixm:markedDeicingArea 0 1
<xs:group> aixm:MarkingPropertyGroup 0 (1)
