Documentation for AIXM 5.1.1
Definition Type: Group
Name: DeicingAreaPropertyGroup
Namespace: http://www.aixm.aero/schema/5.1.1
Containing Schema: AIXM_Features.xsd

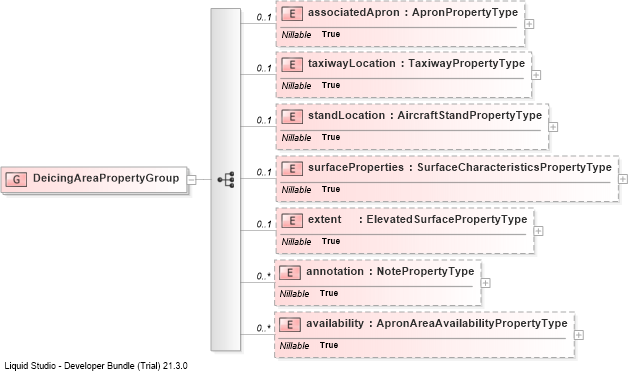

Collapse XSD Schema Diagram:
Drilldown into availabilityDrilldown into annotationDrilldown into extentDrilldown into surfacePropertiesDrilldown into standLocationDrilldown into taxiwayLocationDrilldown into associatedApronXSD Diagram of DeicingAreaPropertyGroup
Collapse XSD Schema Code:
<group name="DeicingAreaPropertyGroup">
    <sequence>
        <element name="associatedApron" type="aixm:ApronPropertyType" nillable="true" minOccurs="0" maxOccurs="1" />
        <element name="taxiwayLocation" type="aixm:TaxiwayPropertyType" nillable="true" minOccurs="0" maxOccurs="1" />
        <element name="standLocation" type="aixm:AircraftStandPropertyType" nillable="true" minOccurs="0" maxOccurs="1" />
        <element name="surfaceProperties" type="aixm:SurfaceCharacteristicsPropertyType" nillable="true" minOccurs="0" maxOccurs="1" />
        <element name="extent" type="aixm:ElevatedSurfacePropertyType" nillable="true" minOccurs="0" maxOccurs="1" />
        <element name="annotation" type="aixm:NotePropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
        <element name="availability" type="aixm:ApronAreaAvailabilityPropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
    </sequence>
</group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
associatedApron aixm:associatedApron 0 1
taxiwayLocation aixm:taxiwayLocation 0 1
standLocation aixm:standLocation 0 1
surfaceProperties aixm:surfaceProperties 0 1
extent aixm:extent 0 1
annotation aixm:annotation 0 unbounded
availability aixm:availability 0 unbounded
