Definition Type: Group
Name: DepartureArrivalConditionPropertyGroup
Namespace: http://www.aixm.aero/schema/5.1.1
Containing Schema: AIXM_Features.xsd

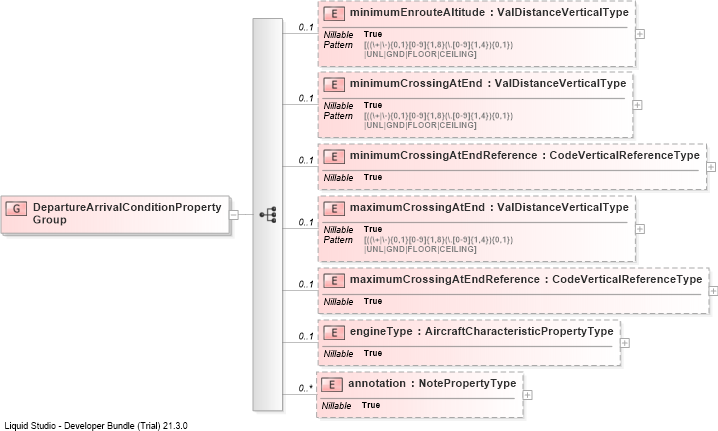

Collapse XSD Schema Diagram:
Drilldown into annotationDrilldown into engineTypeDrilldown into maximumCrossingAtEndReferenceDrilldown into maximumCrossingAtEndDrilldown into minimumCrossingAtEndReferenceDrilldown into minimumCrossingAtEndDrilldown into minimumEnrouteAltitudeXSD Diagram of DepartureArrivalConditionPropertyGroup
Collapse XSD Schema Code:
<group name="DepartureArrivalConditionPropertyGroup">
    <sequence>
        <element name="minimumEnrouteAltitude" type="aixm:ValDistanceVerticalType" nillable="true" minOccurs="0" />
        <element name="minimumCrossingAtEnd" type="aixm:ValDistanceVerticalType" nillable="true" minOccurs="0" />
        <element name="minimumCrossingAtEndReference" type="aixm:CodeVerticalReferenceType" nillable="true" minOccurs="0" />
        <element name="maximumCrossingAtEnd" type="aixm:ValDistanceVerticalType" nillable="true" minOccurs="0" />
        <element name="maximumCrossingAtEndReference" type="aixm:CodeVerticalReferenceType" nillable="true" minOccurs="0" />
        <element name="engineType" type="aixm:AircraftCharacteristicPropertyType" nillable="true" minOccurs="0" maxOccurs="1" />
        <element name="annotation" type="aixm:NotePropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
    </sequence>
</group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
minimumEnrouteAltitude aixm:minimumEnrouteAltitude 0 (1)
minimumCrossingAtEnd aixm:minimumCrossingAtEnd 0 (1)
minimumCrossingAtEndReference aixm:minimumCrossingAtEndReference 0 (1)
maximumCrossingAtEnd aixm:maximumCrossingAtEnd 0 (1)
maximumCrossingAtEndReference aixm:maximumCrossingAtEndReference 0 (1)
engineType aixm:engineType 0 1
annotation aixm:annotation 0 unbounded
