Documentation for AIXM 5.1.1
Definition Type: Element
Name: departureRunwayTransition
Namespace: http://www.aixm.aero/schema/5.1.1
Type: aixm:LandingTakeoffAreaCollectionPropertyType
Containing Schema: AIXM_Features.xsd
MinOccurs 0
MaxOccurs 1
Abstract

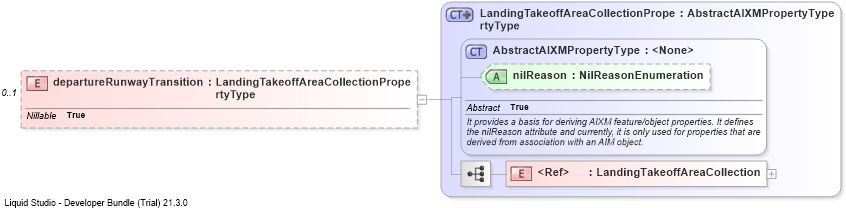

Collapse XSD Schema Diagram:
Drilldown into LandingTakeoffAreaCollectionDrilldown into nilReasonDrilldown into AbstractAIXMPropertyTypeDrilldown into LandingTakeoffAreaCollectionPropertyTypeXSD Diagram of departureRunwayTransition
Collapse XSD Schema Code:
<element name="departureRunwayTransition" type="aixm:LandingTakeoffAreaCollectionPropertyType" nillable="true" minOccurs="0" maxOccurs="1" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
LandingTakeoffAreaCollection aixm:LandingTakeoffAreaCollection (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
nilReason aixm:nilReason (Optional)
Collapse Derivation Tree:
Documentation for AIXM 5.1.1
Generated using Liquid Studio - Developer Bundle (Trial) 21.3.0
